Temperature control

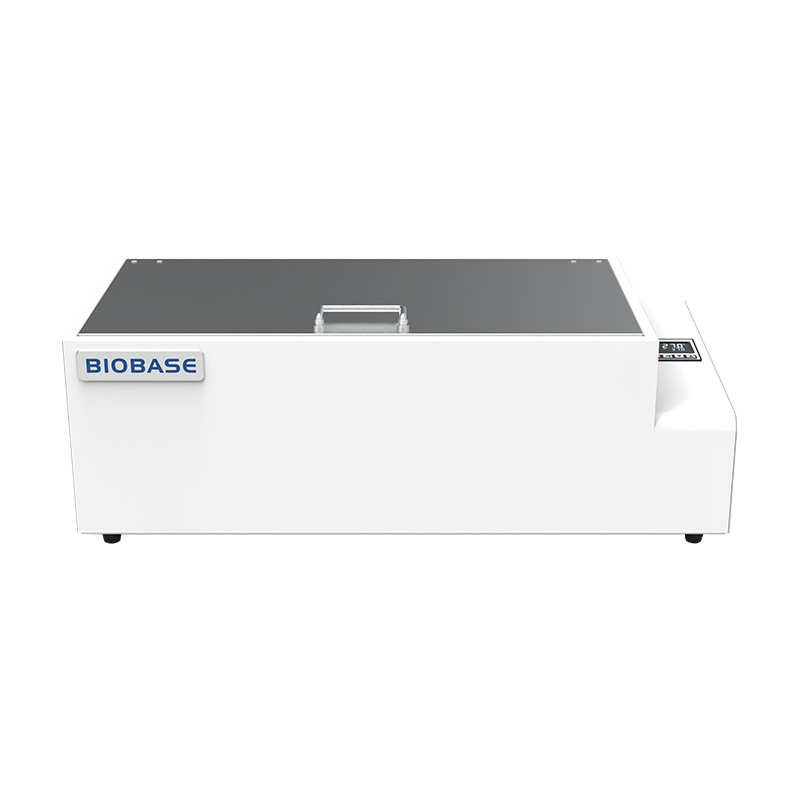

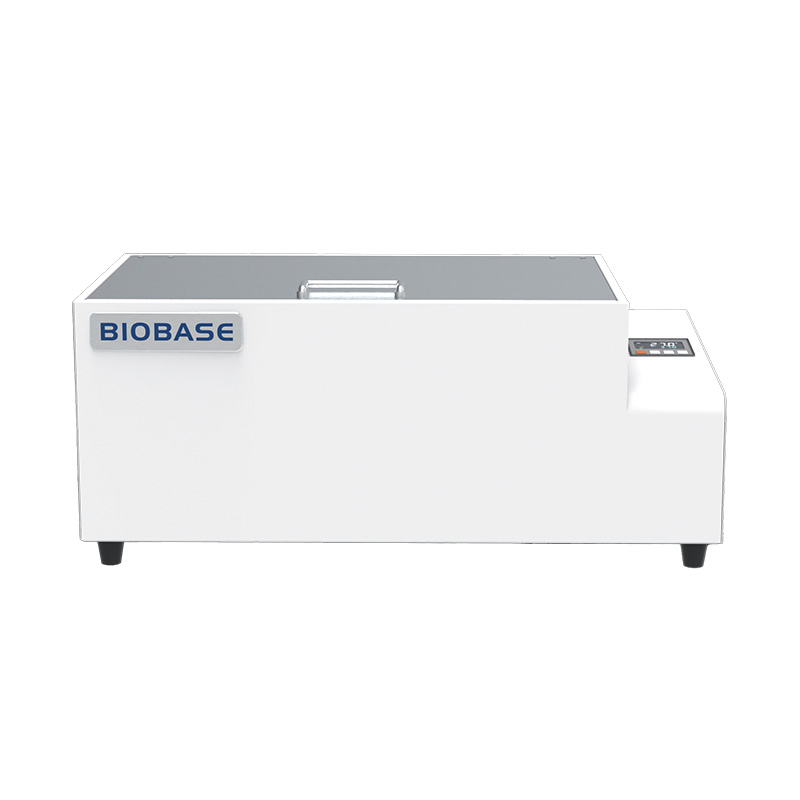

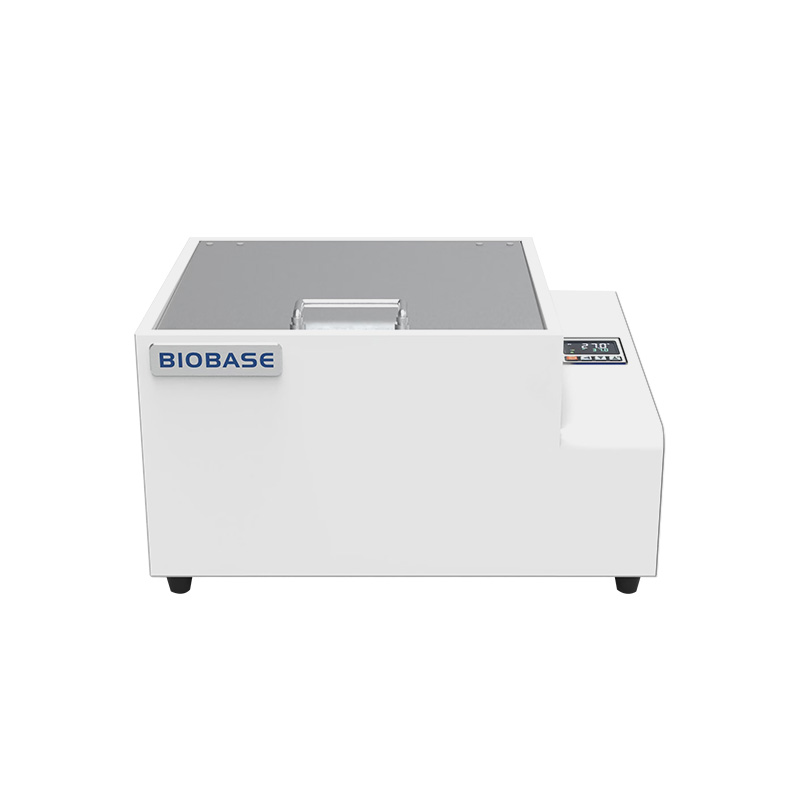

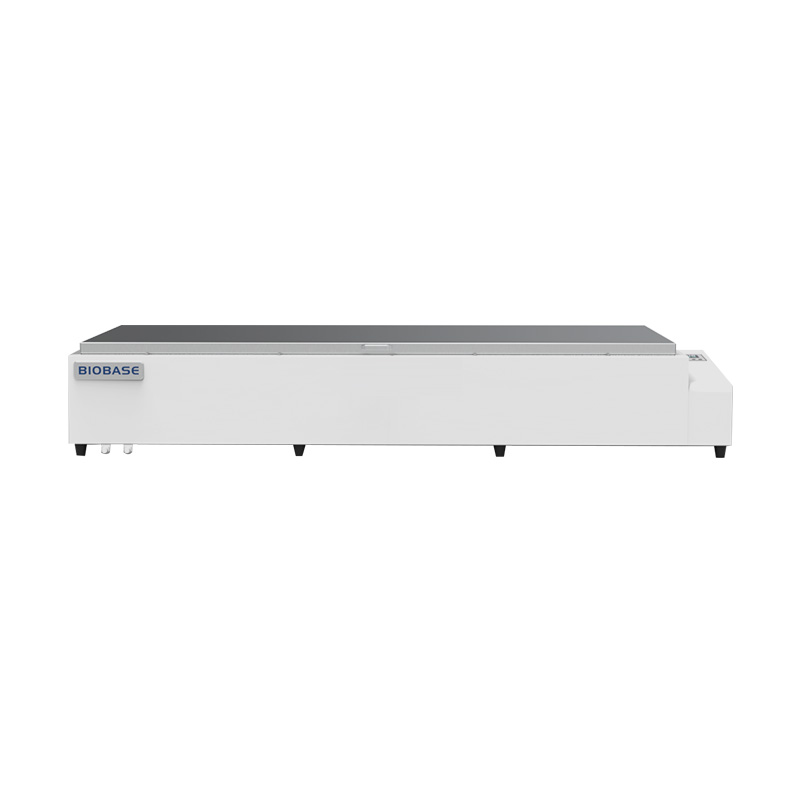

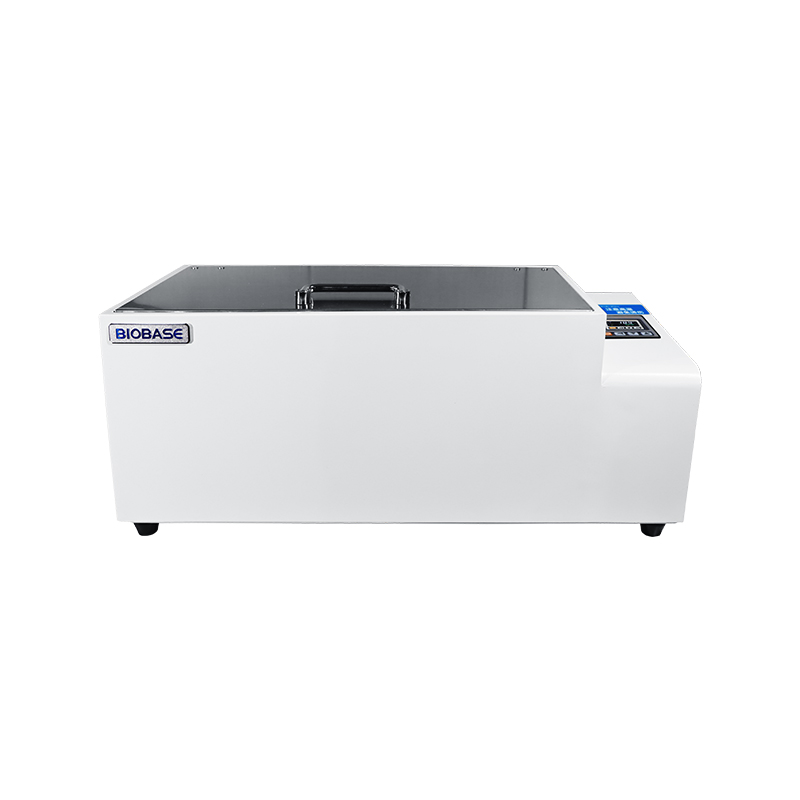

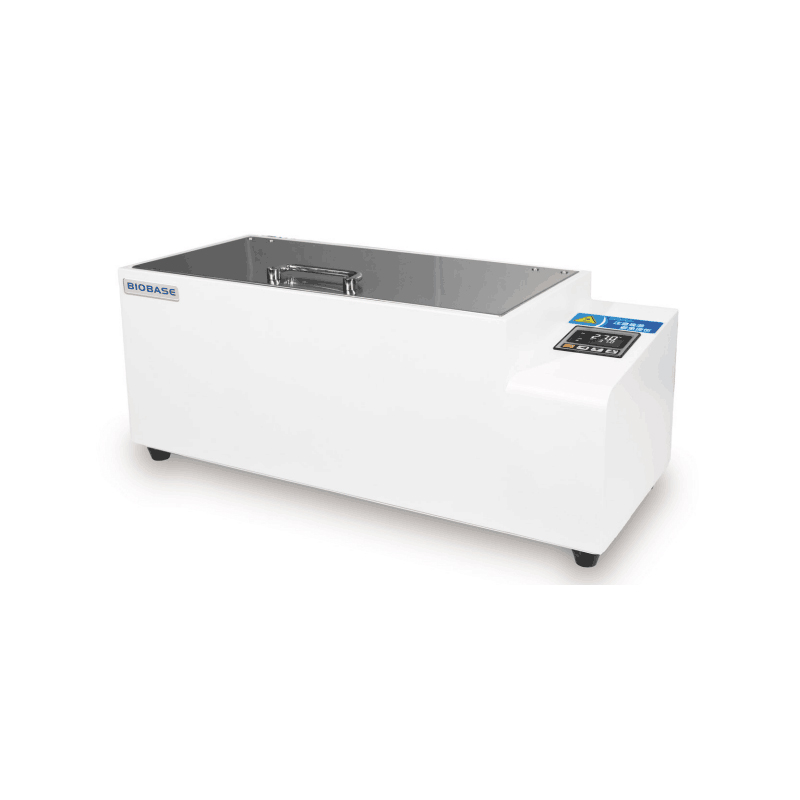

Thermostatic Water Tank 15L 19L 30L 37L 100L
WT-420 / WT-24 / WT-26 / WT-28 / WT-100
The Constant Temperature Water Tank is an advanced laboratory equipment designed to provide precise temperature control and stability for a wide range of applications that require consistent thermal conditions. Ideal for incubating samples, performing chemical reactions, and conducting temperature-sensitive experiments, this tank ensures accurate and uniform temperature maintenance.
Key features
- Programmable temperature
- Uniform heating or cooling
- Selectable capacities and accessories
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | WT-420 | WT-24 | WT-26 | WT-28 | WT-100 |
|---|---|---|---|---|---|
| Type | 1 row, 2 holes | 2 rows, 4 holes | 2 rows, 6 holes | 2 rows, 8 holes | / |
| Capacity | 15 L | 19 L | 30 L | 37 L | 100 L |
| Temp. Range | |||||
| Temp. Fluctuation | ±0.5 °C | ±0.5 °C | ±0.5 °C | ±0.5 °C | ≤±1 °C |
| Temp. Uniformity | ±0.5 °C | ±0.5 °C | ±0.5 °C | ±0.5 °C | ≤±2 °C |
| Temp. Precision | |||||
| Time Range | |||||
| Consumption | 1500 W | 1500 W | 1500 W | 1800 W | 2000 W |
| Power Supply | |||||
| Lid Size | Φ37, Φ58, Φ79, Φ100, Φ120 | Φ37, Φ58, Φ79, Φ100, Φ120 | Φ37, Φ58, Φ79, Φ100, Φ120 | Φ37, Φ58, Φ79, Φ100, Φ120 | / |
| Internal Size(W*D*H) | 420 × 180 × 204 mm | 320 mm*300 mm*200 mm | 500 × 300 × 200 mm | 620 mm*300 mm*200 mm | 1330 × 450 × 170 mm |
| External Size(W*D*H) | 597 × 258 × 270 mm | 515 mm*390 mm*295 mm | 665 × 364 × 281 mm | 815 mm*390 mm*295 mm | 1501 × 523 × 288 mm |
| Net Weight | 8.8 kg | 11 kg | 15 kg | 16 kg | 40 kg |
| Package Size(W*D*H) | 650 × 310 × 330 mm | 570 × 445 × 360 mm | 710 × 405 × 330 mm | 870 × 445 × 360 mm | 1550 × 575 × 330 mm |
| Gross Weight | 11 kg | 13 kg | 18 kg | 19 kg | 45 kg |
MADE-TO-ORDER SUPPLY
Do you need this equipment?
Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
