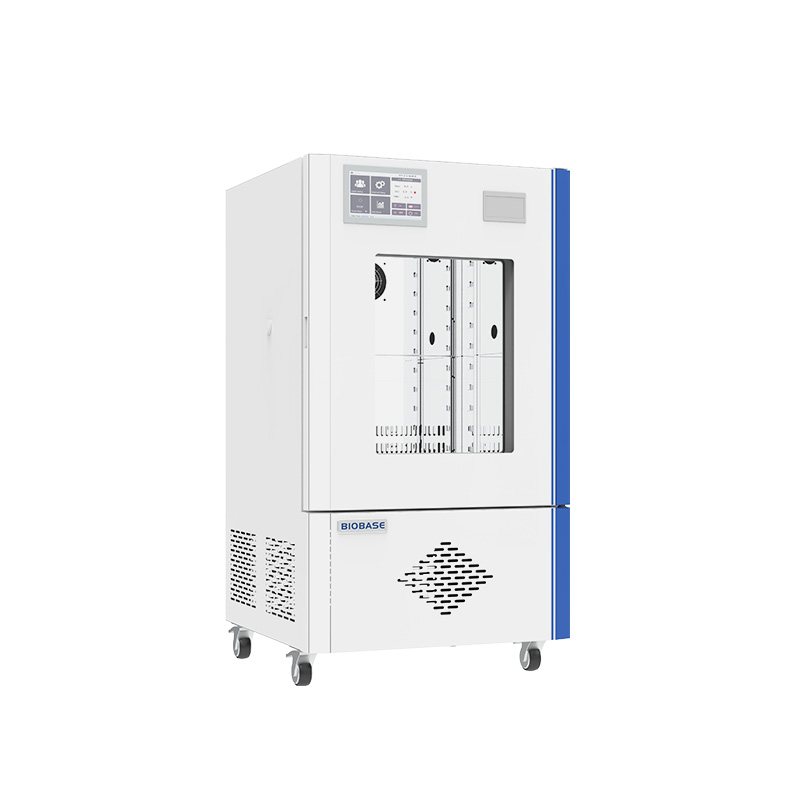

BIOBASE BJPX-HTB100 / BJPX-HTB150 / BJPX-HTB200 / BJPX-HTB250 Constant Temperature and Humidity Incubator (BJPX-HTB)

Photography and technical data supplied by: BIOBASE · 1 image.

Ovens & incubation

Constant Temperature and Humidity Incubator (BJPX-HTB)

BJPX-HTB100 / BJPX-HTB150 / BJPX-HTB200 / BJPX-HTB250

Temperature and environmental control for culture, drying and sample preparation.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Programmable temperature
  • Uniform controlled environment
  • Selectable capacities and accessories

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBJPX-HTB100BJPX-HTB150BJPX-HTB200BJPX-HTB250
Capacity100L150L200L250L
Temp. Sensor
Common to all modelsPT100
Temp. Range
Common to all models0~60℃
Temp. Fluctuation
Common to all models±1℃(@37℃)
Temp. Uniformity
Common to all models±2℃(@37℃)
Temp. Precision
Common to all models0.1℃
Humidity Range
Common to all models50~90%RH(@20~50℃)
Humidity Fluctuation
Common to all models≤±8%RH(@20~50℃)
Humidity Precision
Common to all models1.0%RH
Humidification Method
Common to all modelsBuilt-in steam humidification
RefrigerantR290, 80gR290, 80gR290, 100gR290, 100g
Heating System
Common to all modelsStainless steel heater
Timing Range
Common to all models0~999h59min
Control Type
Common to all modelsMicrocomputer PID controller
Display
Common to all models7-inch touch screen display
Material
Common to all modelsExternal cold-rolled steel with painting; internal stainless steel
Power Supply
Common to all modelsAC 220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer)
Consumption1200W1200W1500W1500W
Shelves2233
Standard Accessories
Common to all modelsPrinter, BOD socket, shelf, test port*2
Optional Accessories
Common to all modelsAutomatic water supply system, USB interface
Internal Size(W*D*H)500*350*580mm550*401*690mm600*450*750mm660*450*850mm
External Size(W*D*H)644*647*1170mm690*692*1270mm742*743*1340mm802*743*1440mm
Packing Size(W*D*H)790*795*1350mm820*820*1450mm880*880*1520mm945*880*1720mm
Net Weight105kg120kg130kg145kg
Gross Weight120kg140kg150kg170kg

Photography and technical data supplied by BIOBASE.
