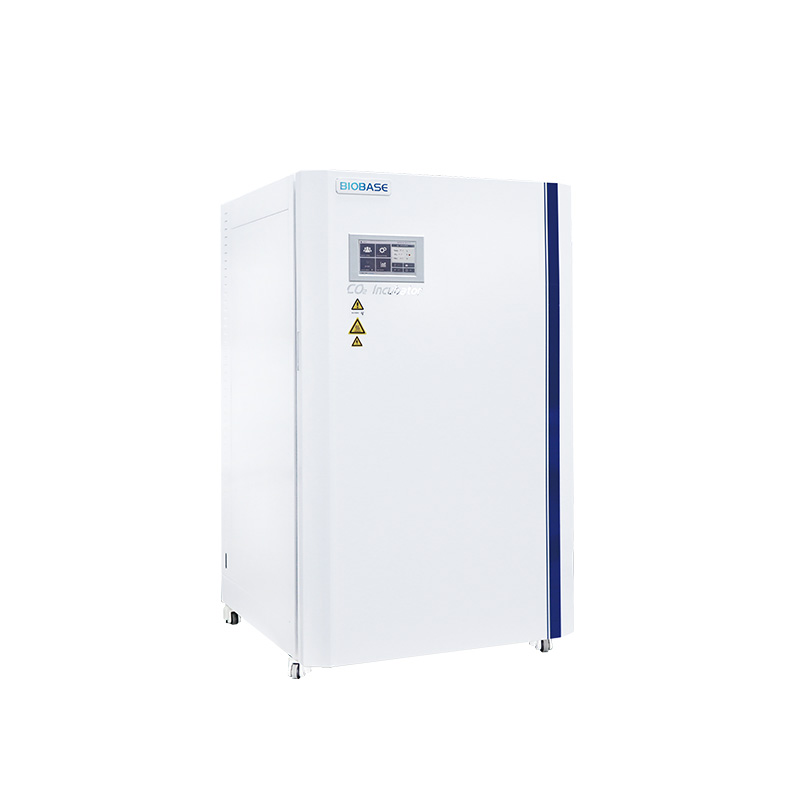

CO2 Incubator 100L 160L 200L 300L

BJPX-C100M / BJPX-C160M / BJPX-C200M / BJPX-C300M

The CO2 incubator simulates the growth environment of cells/tissues in vivo by simulating in the incubator. The incubator requires a stable temperature(37 °C), a stable CO2, level(5 %), a constant pH(pH: 2–7.4), and a high relative saturated humidity(95 %).

Key features

Programmable temperature
Uniform controlled environment
Selectable capacities and accessories

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Shelves
USB interface
CO2 relief valve
CO₂ gas filter

Optional accessories

Water pump

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BJPX-C100M	BJPX-C160M	BJPX-C200M	BJPX-C300M
Type	Common to all modelsMedical series, air jacket
Sterilization Type	Common to all models90 °C moist heat sterilization
Capacity	100 L	160 L	200 L	300 L
Temp. Sensor	Common to all modelsPT100
Temp. Range	Common to all modelsRT＋5–60 °C
Temp. Fluctuation	Common to all models±0.3 °C(@37 °C)
Temp. Uniformity	Common to all models±0.5 °C(@37 °C)
Temp. Precision	Common to all models0.1 °C
Timing Range	Common to all models0–999 h or continuous
Display	Common to all models7-inch touch screen
CO2 Control	Common to all modelsIR infrared sensor with calibration certificate
CO2 Range	Common to all models0–20vol%
CO2 Uniformity	Common to all models0.2vol%
CO2 Control Resolution	Common to all models0.1vol%
Ambient Temperature and Humidity	Common to all modelsAmbient Temperature: 5–30 °C(Recommendation: 25±2 °C)
Ambient Temperature and Humidity (2)	Common to all modelsAmbient Humidity: ≤80 %
Filter	Common to all modelsCO2 gas filter
Power Supply	Common to all modelsAC220V, 50/60 Hz(Standard); 110 V, 50/60 Hz(Optional)(External transformer)
Power Supply (2)	Common to all modelsWiring Method: plug
Consumption	800 W	820 W	840 W	1800 W
Shelves	2pcs, adjustable	2pcs, adjustable	3pcs, adjustable	3pcs, adjustable
Optional Accessory	Common to all modelsWater pump
Internal Size(WDH)	407 × 415 × 615 mm	457 × 470 × 753 mm	505 × 470 × 857 mm	567 × 500 × 1068 mm
External Size(WDH)	632 × 740 × 894 mm	682 × 796 × 1030 mm	730 × 796 × 1134 mm	792 × 830 × 1344 mm
Package Size(WDH)	757 × 865 × 1055 mm	807 × 921 × 1190 mm	855 × 921 × 1294 mm	917 × 955 × 1504 mm
Net Weight	95 kg	110 kg	130 kg	185 kg
Gross Weight	120 kg	135 kg	155 kg	210 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
