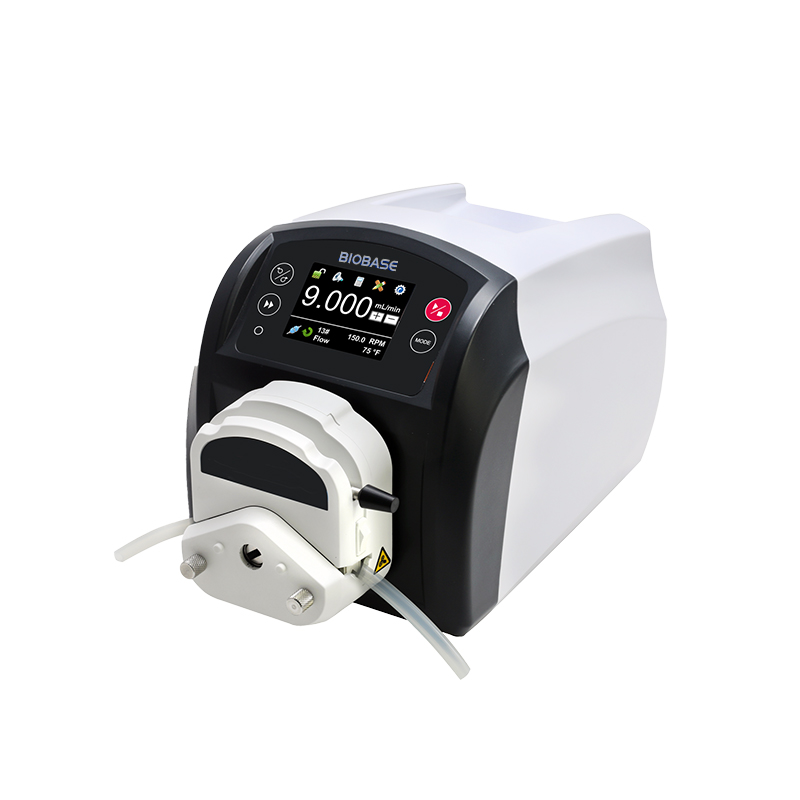

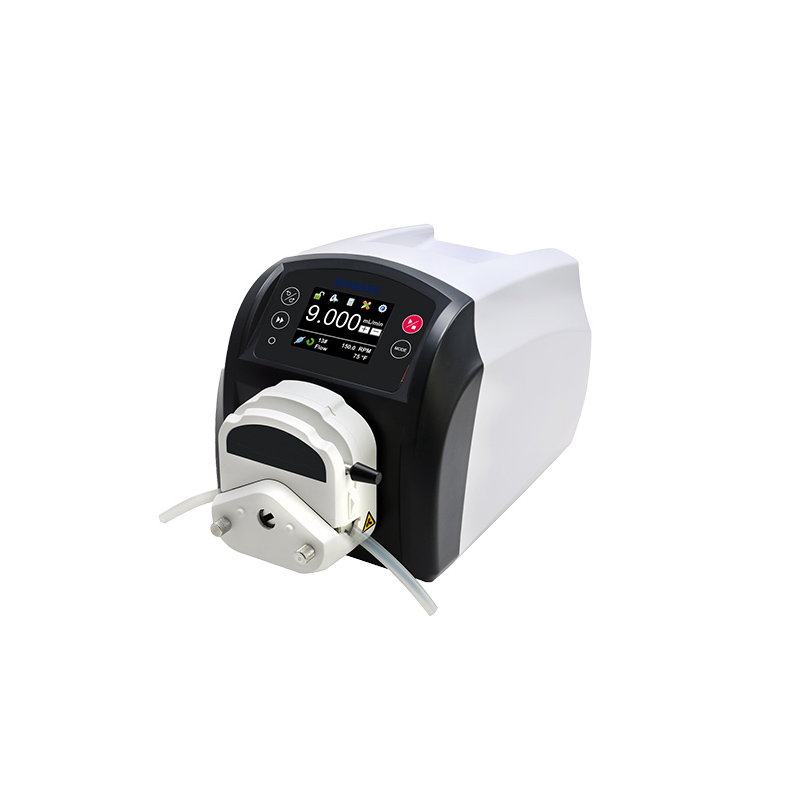

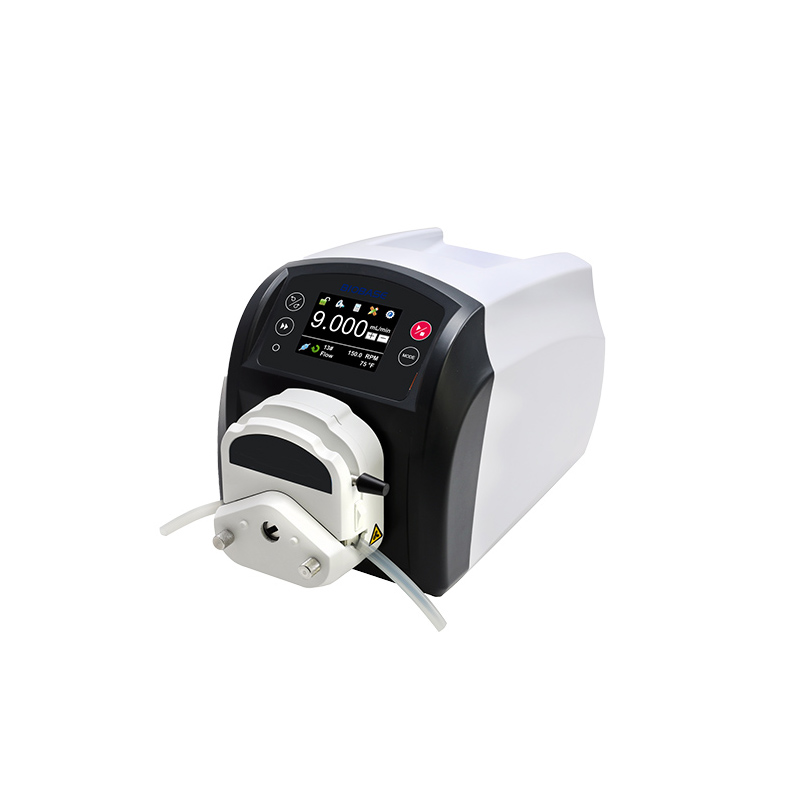

Dispensing peristaltic pump — BT-F Series

BT101F / BT301F / BT601F

The Dispensing Peristaltic Pump is an advanced liquid handling device designed for precise and controlled dispensing of a wide range of fluids.

Key features

Adjustable flow and speed
Transfer without contact with the mechanism
Selectable heads, tubing and channels

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BT101F	BT301F	BT601F
Flow Range	0.0001–720 mL/min	0.005–1750 mL/min	0.006–3000 mL/min
Rotation Range	0.1–150 rpm	0.1–350 rpm	0.1–600 rpm
Speed Resolution	Common to all models0.1 rpm
Dispensed Liquid Volume Range	Common to all models0.05 mL ~9999 L
Dispensed Frequency Range	Common to all models1 to 999 times, "0" means infinite loop
Dispensed Interval Time	Common to all models0.1–999.9 seconds/minute/hour, time unit is adjustable
Speed Accuracy	Common to all models<±0.2 %
Power Supply	Common to all modelsAC100–240 V, 50 Hz/60 Hz
Power	<30 W	<40 W	<50 W
External Control Interface	Common to all modelsExternal control input level 5 V, 12 V(standard), 24 V(optional)
Communication Interface	Common to all modelsExternal control analog 0–5 V(standard), 0–10 V, 4–20 mA(optional) RS485 communication, compatible with modbus protocol
Working Environment	Common to all modelsAmbient temperature 0–40 °C, relative humidity <80 %
Protection Level	Common to all modelsIP31
Overall Dimensions(LWH)	Common to all models261 × 180 × 197 mm
Drive Weight	4.5 kg	4.7 kg	4.9 kg
Packing Size	Common to all models430 × 290 × 320 mm
Gross Weight	Common to all models8 kg
Driver Model	Common to all modelsApplicable · Pump Head · Number · Of Channels · Applicable Hose · Single Channel · Flow Rate(ml/min)

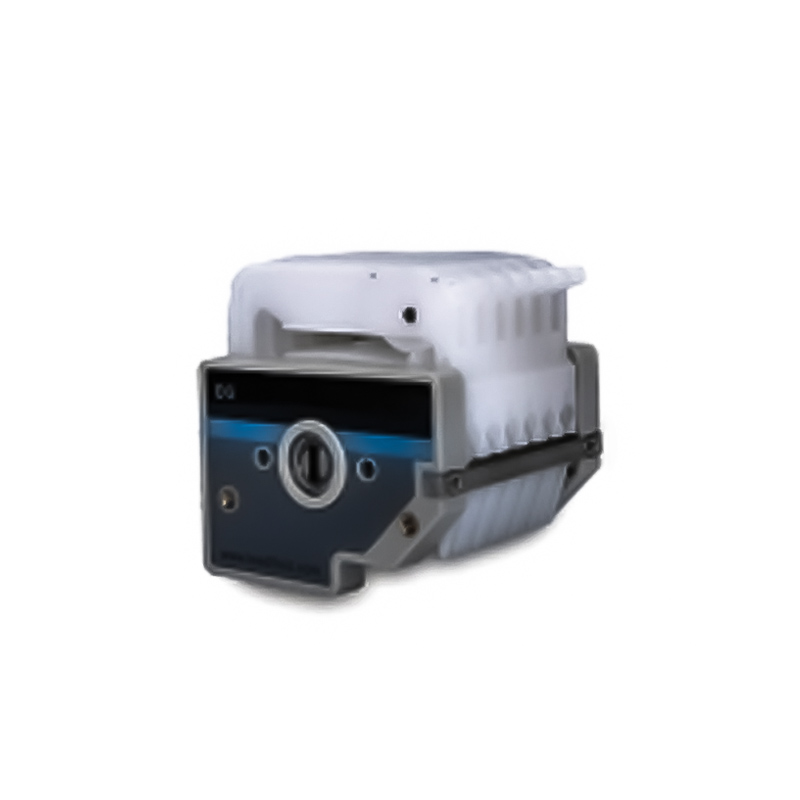

BT101F	Common to all modelsDG/DS(6 rollers) · 1, 2, 4 · Wall 0.8–1 mm, ID≤3.17 mm · 0.00016–49
BT101F (2)	Common to all modelsDG/DS(10 rollers) · 1, 2, 4 · Wall 0.8–1 mm, ID≤3.17 mm · 0.00011–32

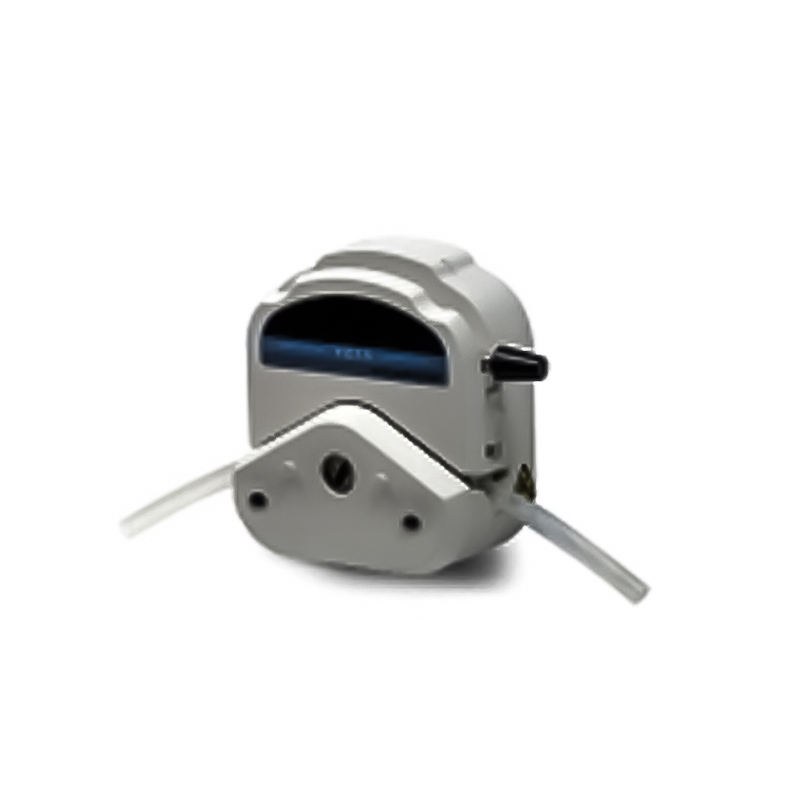

BT101F (3)	Common to all modelsYZ15T · 1, 2 · 13#14#19#16#25#17#18# · 0.005–641

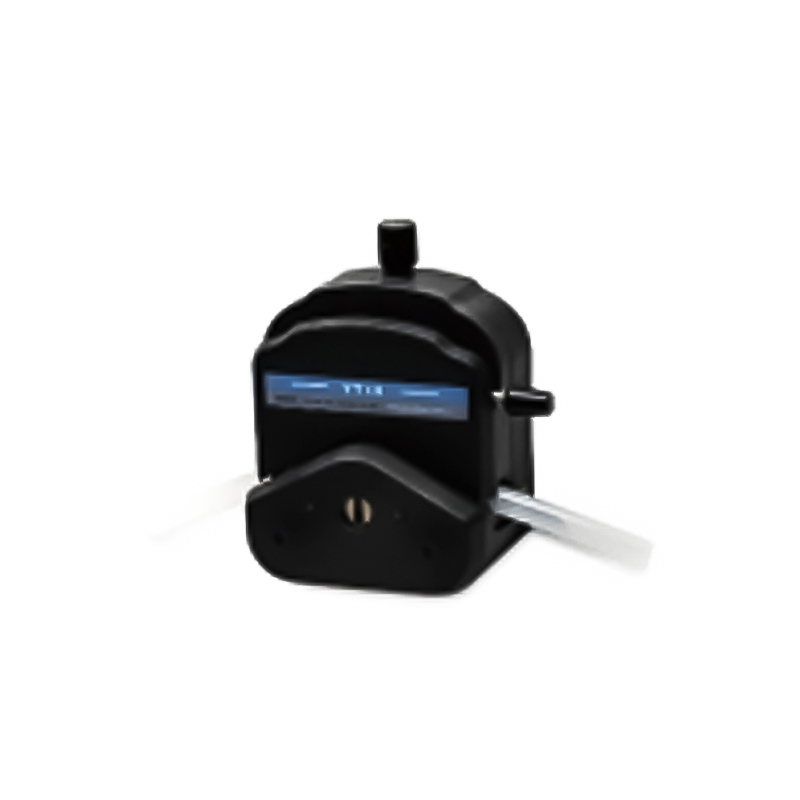

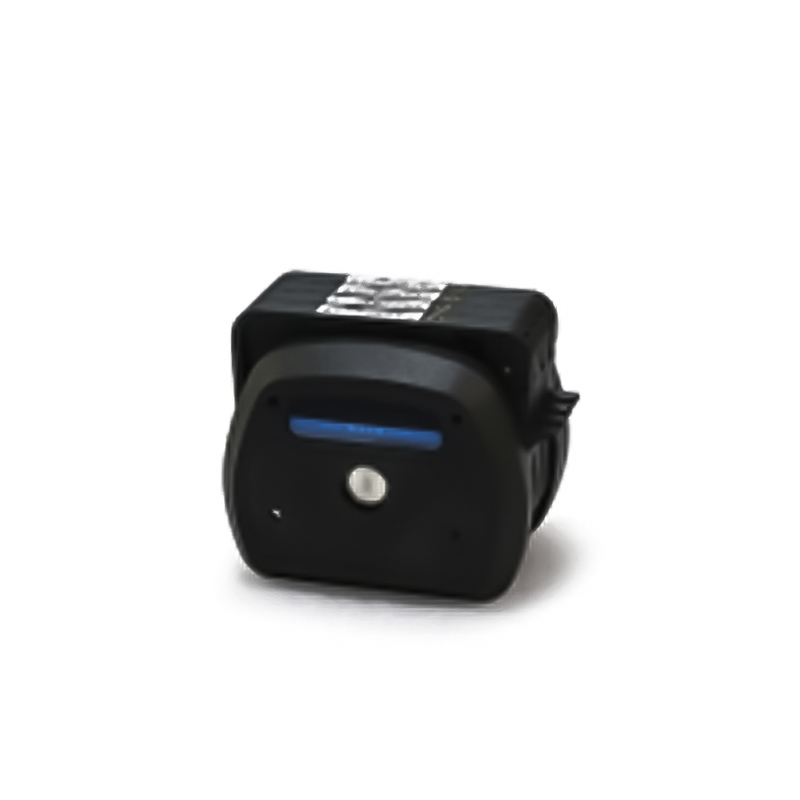

BT101F (4)	Common to all modelsYT25 · 1 · 114#116#15#24#35#36# · 0.024–750
BT301F	Common to all modelsYZ15T · 1 · 13#14#19#16#25#17#18# · 0.005–1495
BT301F (2)	Common to all modelsYT25 · 1 · 114#116#15#24#35#36# · 0.024–1750
BT601F	Common to all modelsYZ15T · 1 · 13#14#19#16#25#17#18# · 0.005–2562
BT601F (2)	Common to all modelsYT25 · 1 · 114#116#15#24#35#36# · 0.024–3000
