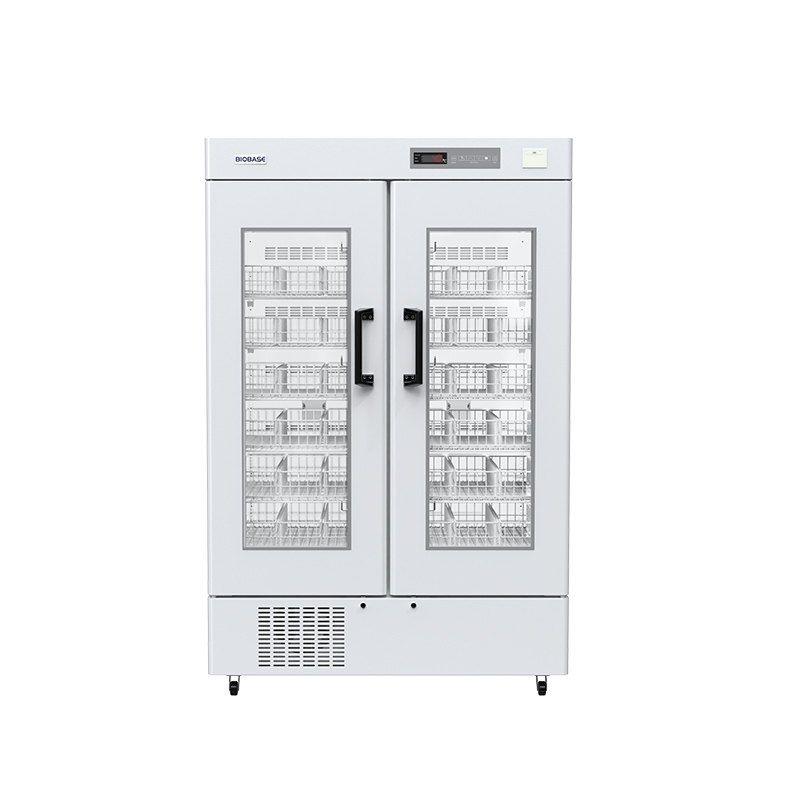

Blood Bank Refrigerator (Double Door)

BBR-4V626 / BBR-4V966

Blood bank refrigerator series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, etc. The storing temperature in the body can be regulated by the temperature button on the control panel.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Thermal printer
Test hole

Optional accessories

Temperature recorder
USB interface
RS485 interface

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BBR-4V626	BBR-4V966
Capacity	626 L	966 L
Temp. Range	Common to all models2–6 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	Common to all models≤1.5 °C
Temp. Stability	Common to all models≤2 °C
Recovery Time(Recover to 6℃ in an ambient temp. of 32℃)	Common to all models≤15 min
Cooling Time(Cool down to 5℃ in an ambient temp. of 32℃)	Common to all models≤100 min
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED display
Alarm	Common to all modelsHigh / low temperature alarm, power failure alarm(72 h), controller failure alarm, battery status alarm, door ajar alarm
Refrigeration Type	Common to all modelsAir-cooling
Refrigerant	Common to all modelsR134a/240 g
Compressor	Common to all modelsInternational famous compressor/1
Condenser&Evaporator	Common to all modelsCopper tube aluminum fin type
Defrost	Common to all modelsAutomatic defrost
Construction	Common to all modelsPolyurethane cyclopentane foam
Material — Internal Material	Common to all modelsStainless steel
Material — External Material	Common to all modelsSprayed steel plate
Door	Common to all modelsOuter door: electrically heated glass semi-foam door2 Inner door: acrylic door6
Casters	Common to all modelsYes
Consumption	550 W	560 W
Power Supply	Common to all modelsAC220V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional)
Shelf	Common to all models12pcs
Baskets	Common to all models36pcs
Blood Bags(450ml)	360pcs	576pcs
Standard Accessory	Common to all modelsThermal printer, test hole
Optional Accessory	Common to all modelsTemperature recorder, USB interface, RS485 interface
Internal Size(WDH)	1100 × 420 × 1325 mm	1100 × 650 × 1325 mm
External Size(WDH)	1220 × 665 × 1885 mm	1220 × 895 × 1885 mm
Package Size(WDH)	1360 × 770 × 2100 mm	1360 × 1000 × 2100 mm
Net Weight	220 kg	246 kg
Gross Weight	285 kg	320 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
