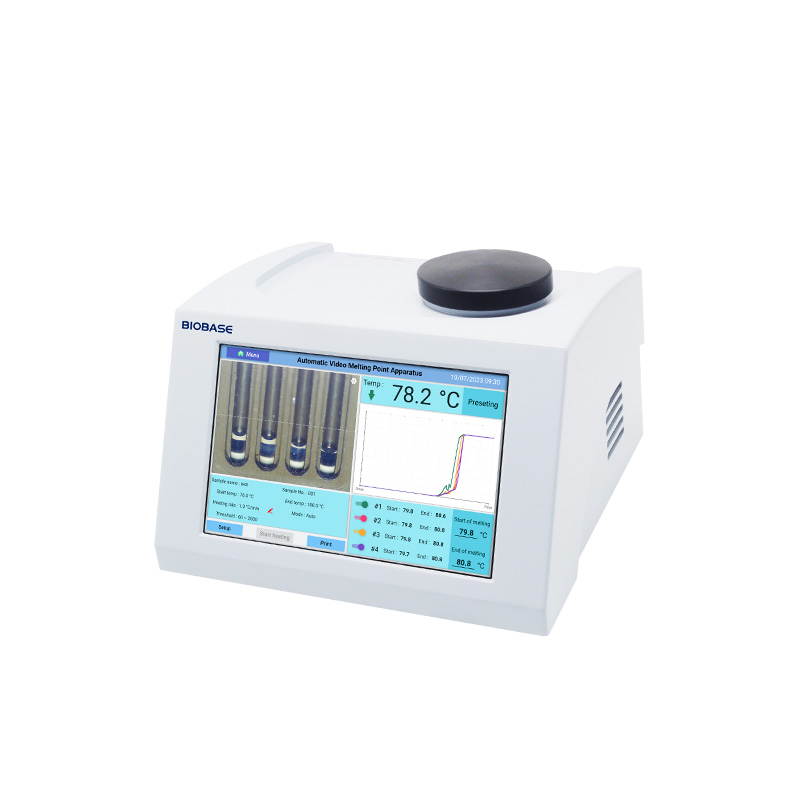

Video melting-point apparatus

Name: Video melting-point apparatus BK-P685 / BK-P682
Brand: BIOBASE
SKU: BK-P685

BK-P685 / BK-P682

Instrumental measurement of physicochemical parameters for laboratory workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Digital measurement
Method matched to the parameter
Repeatable results and data capture

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-P685	BK-P682
Measurement Range	R.T.~400℃	R.T.~360℃
Measurement Mode	Common to all modelsAutomatic/visual(high-definition carnera, video caplure, playback monitoring)
Measurement Methods	200	150
Number of Users	200	150
Audit Trail	Common to all modelsOptional(FDA)
Electronic Signature	Common to all modelsYES
Resolution	Common to all models0.01℃
Linear Heating-up Rate	Common to all models0.1℃/min~20℃/min
Accuracy	Common to all models≤200℃±0.3℃; >200℃±0.5℃
Repeatability	Common to all models0.3℃(heating rate: 1.0℃/min)
Linear Heating Rate Error	Common to all models±10%
Number of Capillary	Common to all models4
Capillary Dimensions	Common to all modelsOuter diameter: Φ1.4mm, inner diameter: Φ1.0mm, length: 90mm
Height of Sample	Common to all models3mm
Operation System	Common to all modelsAndroid
Date Storage	128G	64G
Display	Common to all models10.1 inches touch screen
Graph Storage	40000	20000
Interface	Common to all models1RS232, 3USB, 1*RJ-45, WIFI
Power Supply	Common to all modelsAC100~240V, 50/60Hz, 150W
Package Size(WDH)	Common to all models495493350mm
Gross Weight	Common to all models5kg
