Biological Microscope

BM-2CBAD / BM-2CBAP / BM-8CAD / BM-8CAP

The Biological Microscope is a sophisticated optical instrument designed for the detailed examination of biological specimens. Ideal for use in educational institutions, research laboratories, medical facilities, and clinical settings, this microscope offers high-resolution imaging and advanced features to support a wide range of applications.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BM-2CBAD	BM-2CBAP	BM-8CAD	BM-8CAP
Viewing Head	Common to all modelsTrinocular head, inclined at 30°, 360° rotatable, Interpupillary 48–75 mm, Mechanical tube length 160 mm
Eyepiece	Common to all modelsWF10X/18 mm, WF16X/11 mm
Objective	Common to all models4X N.A=0.10 WD=37.5 mm 10X N.A=0.25 WD=7.31 mm 40X N.A=0.65 WD=0.63 mm 100X(Oil) N.A=1.25 WD=0.18 mm
Stage	Mechanical Stage 130 × 125 mm, Moving Range 70 × 30 mm, Cursors 0.1 mm	Mechanical Stage 130 × 125 mm, Moving Range 70 × 30 mm, Cursors 0.1 mm	Mechanical Stage 140 × 140 mm, Moving Range 75 × 40 mm, Cursors 0.1 mm	Mechanical Stage 140 × 140 mm, Moving Range 75 × 40 mm, Cursors 0.1 mm
Focusing	Coaxial Coarse & Fine Adjustable System, Range 15 mm, Fine Division 0.002 mm	Coaxial Coarse & Fine Adjustable System, Range 15 mm, Fine Division 0.002 mm	Coaxial Coarse & Fine Adjustable System, Range 30 mm, Fine Division 0.002 mm	Coaxial Coarse & Fine Adjustable System, Range 30 mm, Fine Division 0.002 mm
Condenser	Common to all modelsN.A.1.25 Adjustable Medium Abbe condenser with variable light bar
Filter	Common to all modelsBlue, yellow, green
Illumination	Common to all modelsLED dual-color light source, adjustable brightness

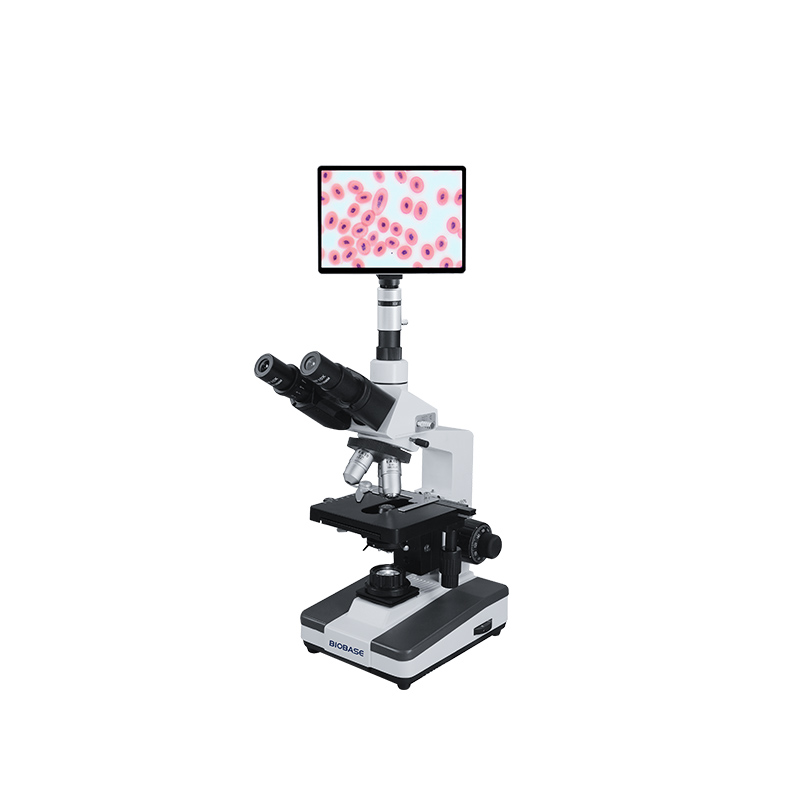

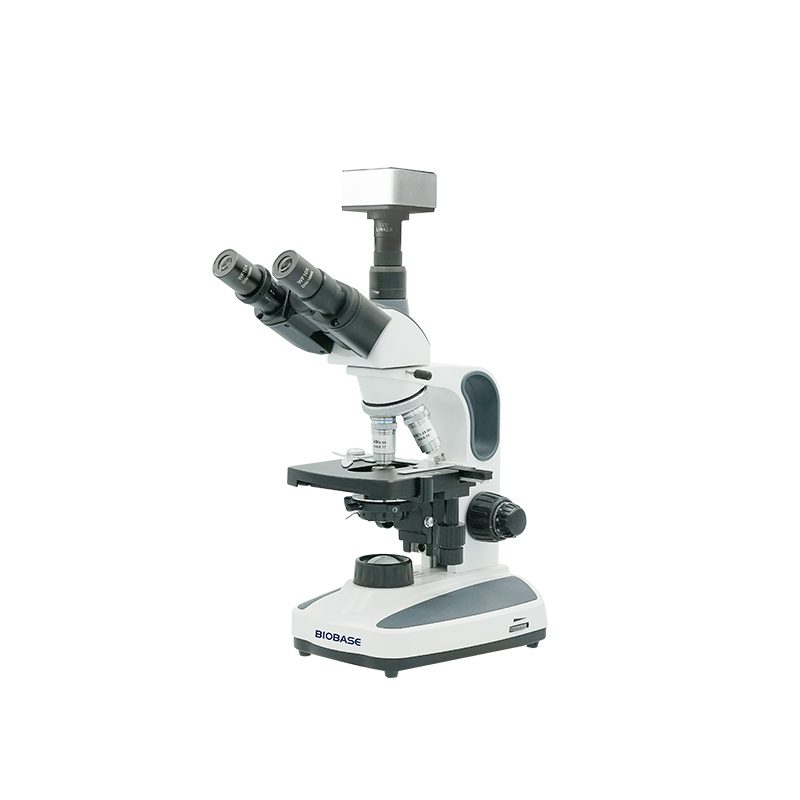

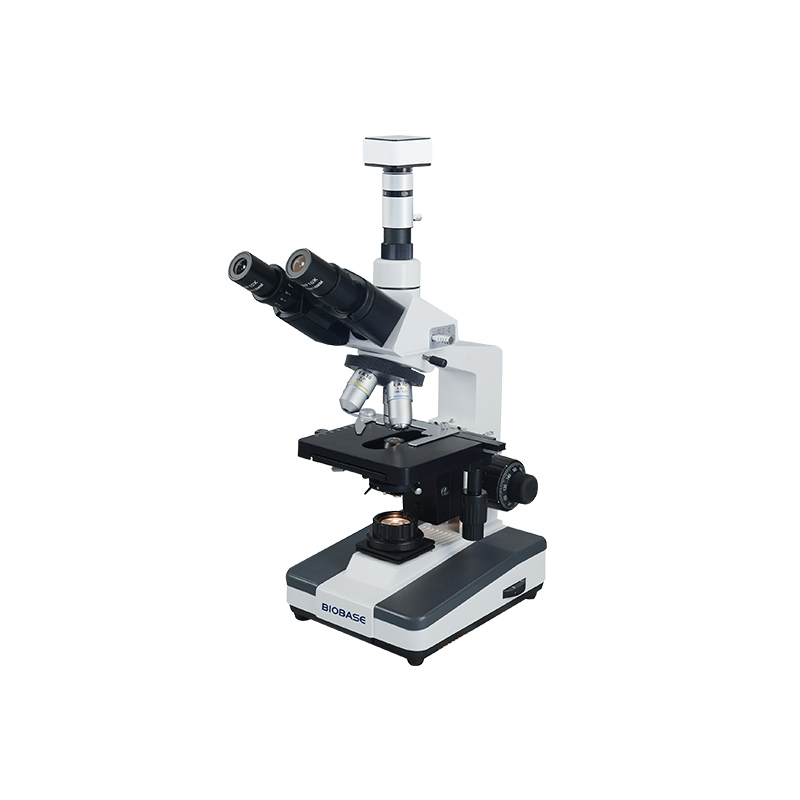

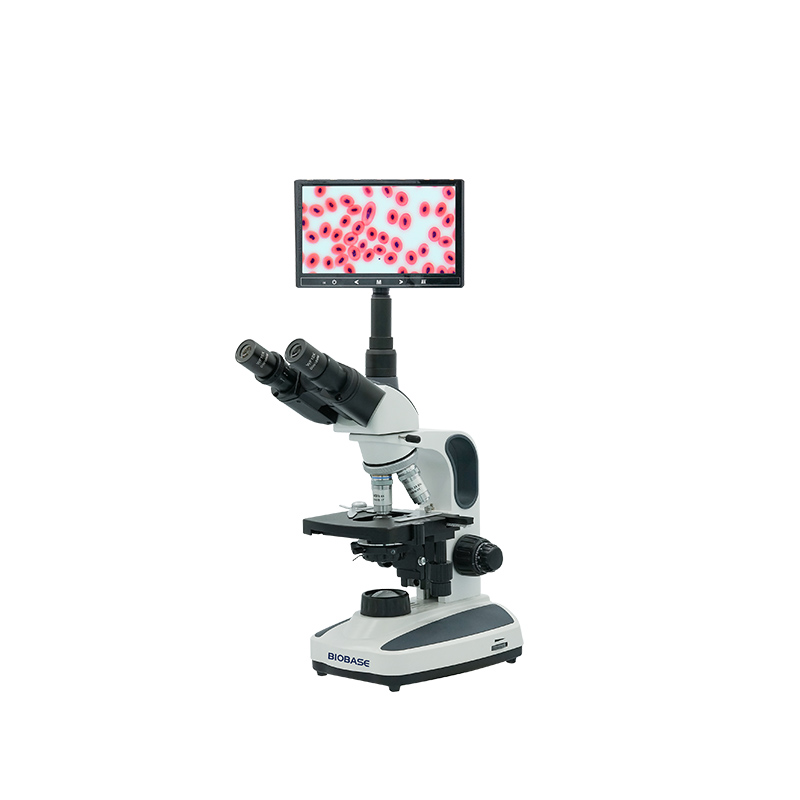

Imaging System	Digital CMOS camera, 2M pixels, with geometric measurement and analysis software, C interface	9-inch large screen display	Digital CMOS camera, 5M pixels, with geometric measurement and analysis software, MCL-Z adapter lens	10.5-inch screen Android tablet with special adapter lens
Power Supply	Common to all modelsAC85–240 V, 50/60 Hz
Package Size (WDH)	355 × 245 × 590 mm	365 × 255 × 610 mm	425 × 330 × 450 mm	425 × 330 × 450 mm
Net Weight	6 kg	6 kg	8 kg	10 kg
Gross Weight	6.5 kg	6.5 kg	8.5 kg	10.5 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
