Metallurgical Microscope

XJD-100 / XJD-200 / XDS-1 / 4XC

Metallographic microscope ‌ is a high-tech product which combines optical microscope technology, photoelectric conversion technology and computer image processing technology perfectly. It can easily observe metallographic images on a computer, analyze and grade metallographic maps, edit, save and print the pictures.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	XJD-100	XJD-200	XDS-1	4XC

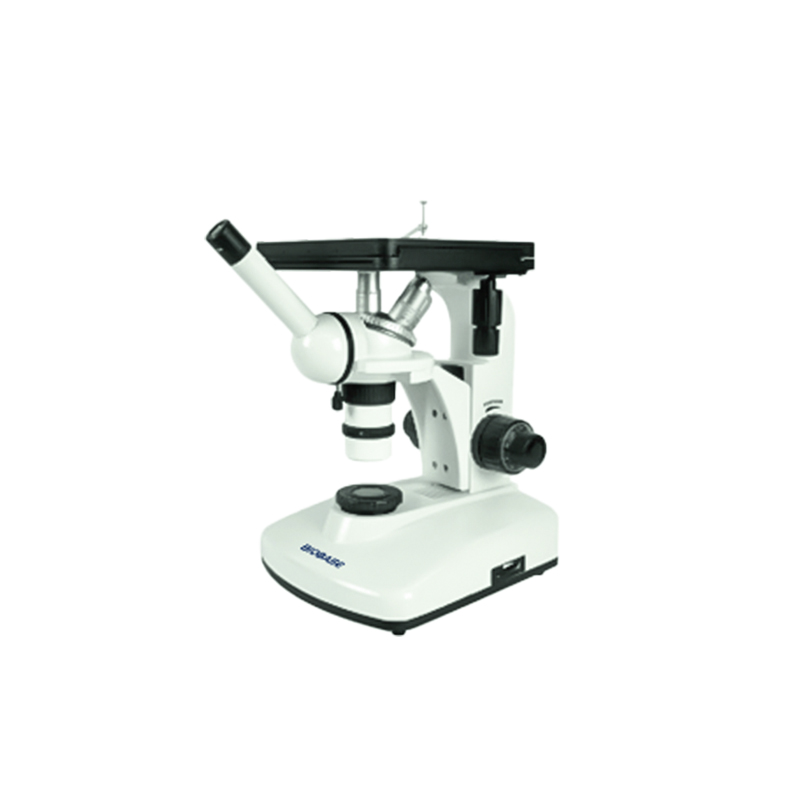

Observation Head	Common to all modelsMonocular observation head tilted 45° · √ · · · · · ·

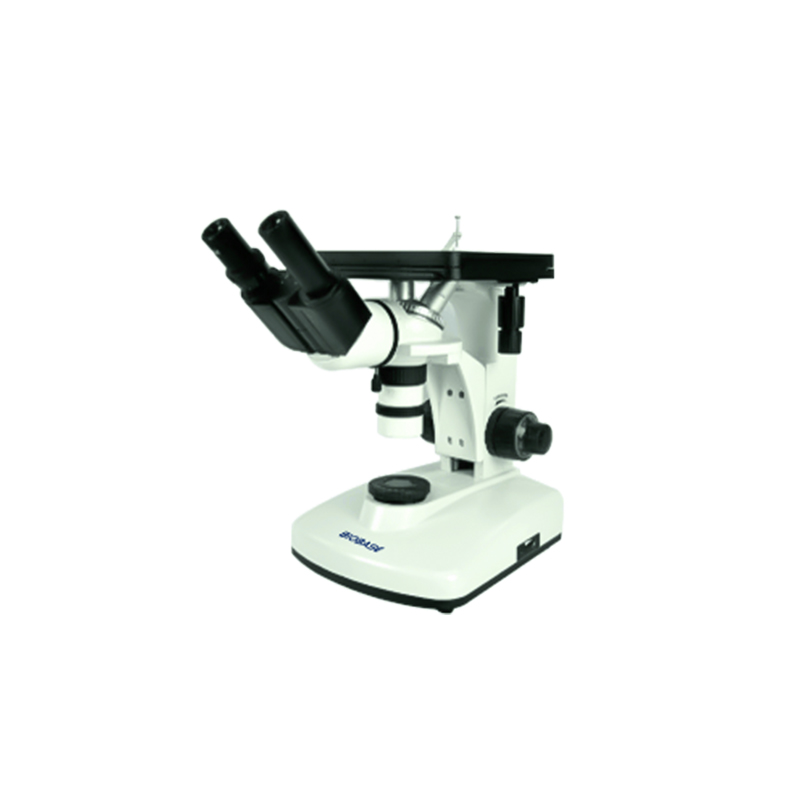

Observation Head (2)	Common to all modelsArticulated binocular observation head tilted 45° · · · √ · · · ·

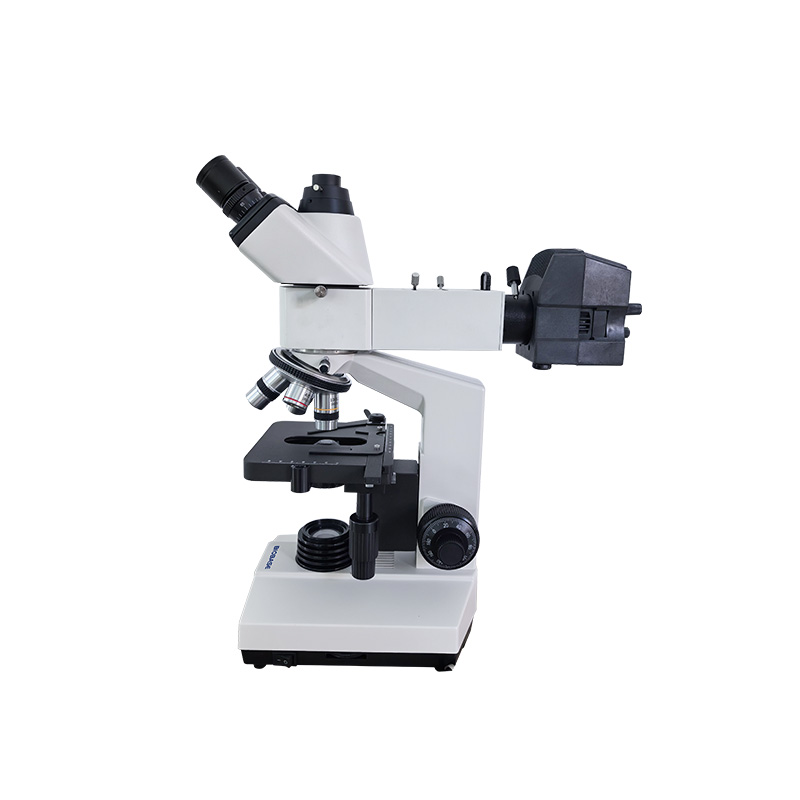

Observation Head (3)	Common to all modelsTranslational sliding trinocular observation head 45° tilt · · · · · √ · ·

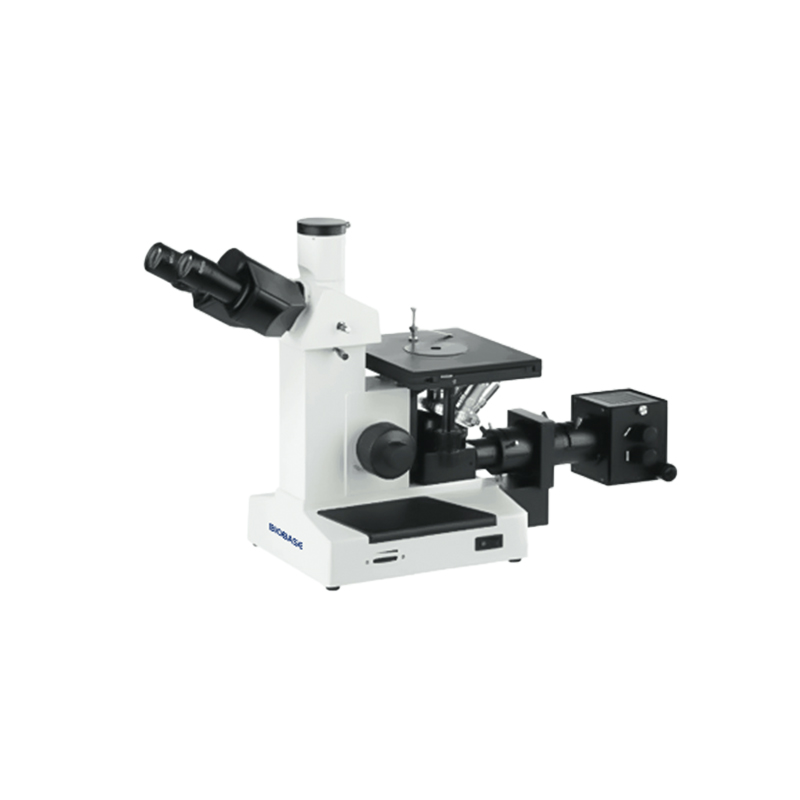

Observation Head (4)	Common to all modelsArticulated trinocular viewing head tilted 30 ° · · · · · · · √
Nosepiece	Common to all modelsFour-aperture nosepiece · √ · √ · √ · √
Eyepiece	Common to all modelsWF10X · √ · √ · · · ·
Eyepiece (2)	Common to all modelsWF10 × 18 mm · · · · · √ · √
Objective Lens	Common to all modelsAchromatic objective lens: 10X, 100X LWD plan achromatic objective: 40X · √ · √ · · · ·
Objective Lens (2)	Common to all modelsAchromatic objective lens 4X, 10X, 40X, 100X · · · · · √ · ·
Objective Lens (3)	Common to all modelsLWD plan achromatic objectives 10X, 20X, 40X, Achromatic objective lens 100X · · · · · · · √
Stage	Common to all modelsDouble-layer mechanical platform 180 × 150 mm moving range 15 × 15 mm · · · · · · · √
Stage (2)	Common to all modelsDouble-layer mechanical platform 140 × 135 mm moving range 70 × 50 mm · · · · · √ · ·
Stage (3)	Common to all modelsDouble-layer mechanical stage 175 × 135 mm · √ · √ · · · ·
Focusing	Common to all modelsCoaxial coarse and fine focusing, using rack and pinion mechanism, fine focusing value 0.002 mm · √ · √ · √ · √
Illumination	Common to all modelsBuilt-in lighting, halogen lamp 6 V/20 W · √ · √ · · · √
Illumination (2)	Common to all modelsLED lighting · · · · · √ · ·
Filter	Common to all modelsBlue, green, yellow · √ · √ · √ · √
Polarized Light	Common to all models· · · · · · √ · ·
Power Supply	Common to all modelsAC100–240 V, 50/60 Hz · √ · √ · √ · √
Packing Size	420 × 350 × 520 mm	330 × 280 × 440 mm; 370 × 260 × 470 mm	400 × 300 × 450 mm	—
Gross Weight	10 kg	6.5 kg; 5 kg	11 kg	—

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
