Included accessories
- 1000 mL rotary bottle*1
- 500 mL recycling bottle*1
Photography and technical data supplied by: BIOBASE · 6 images.
Rotary evaporation

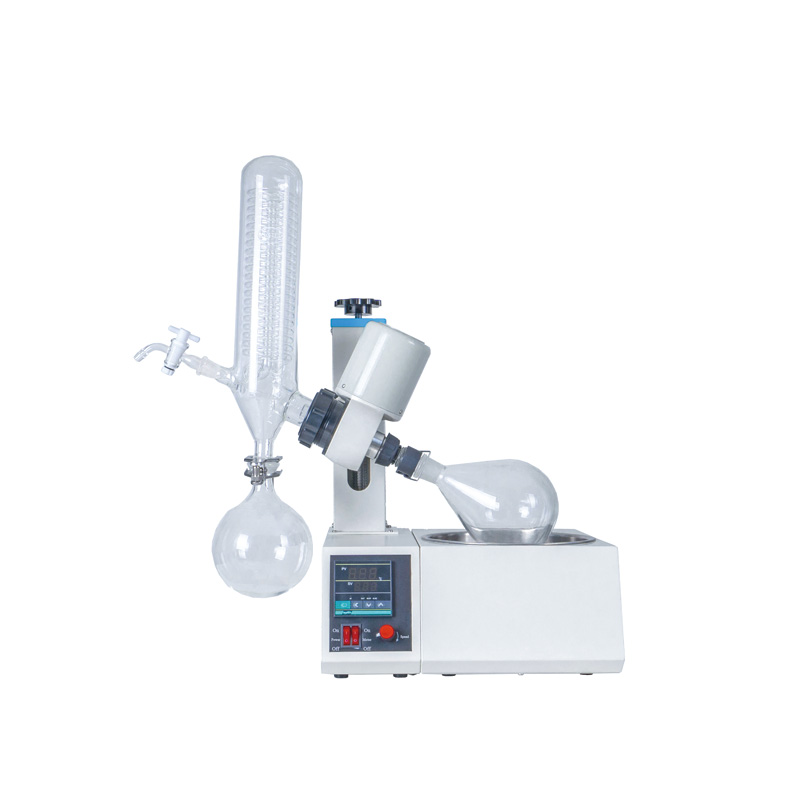

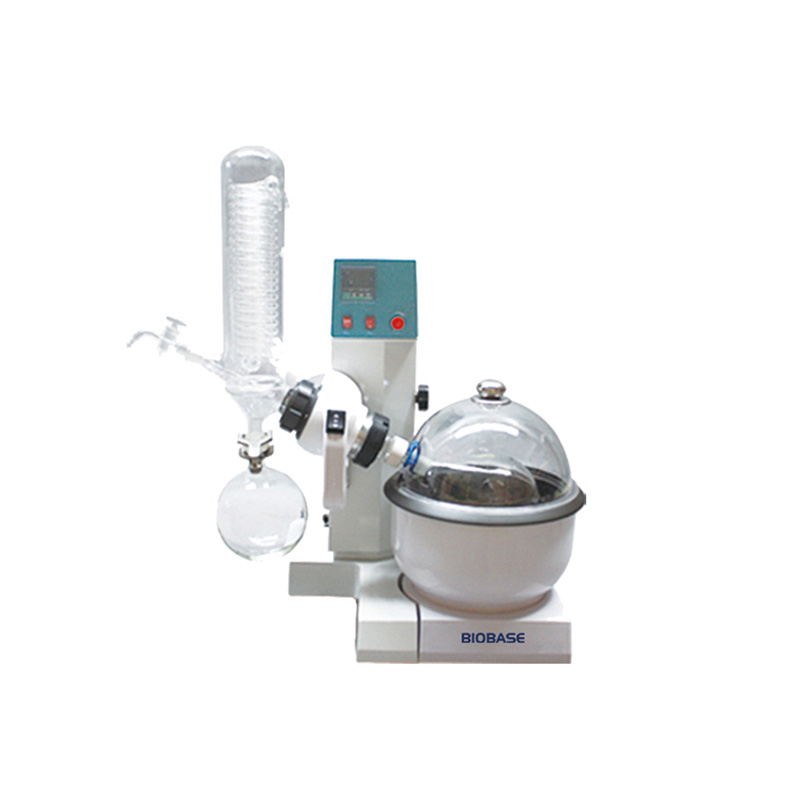

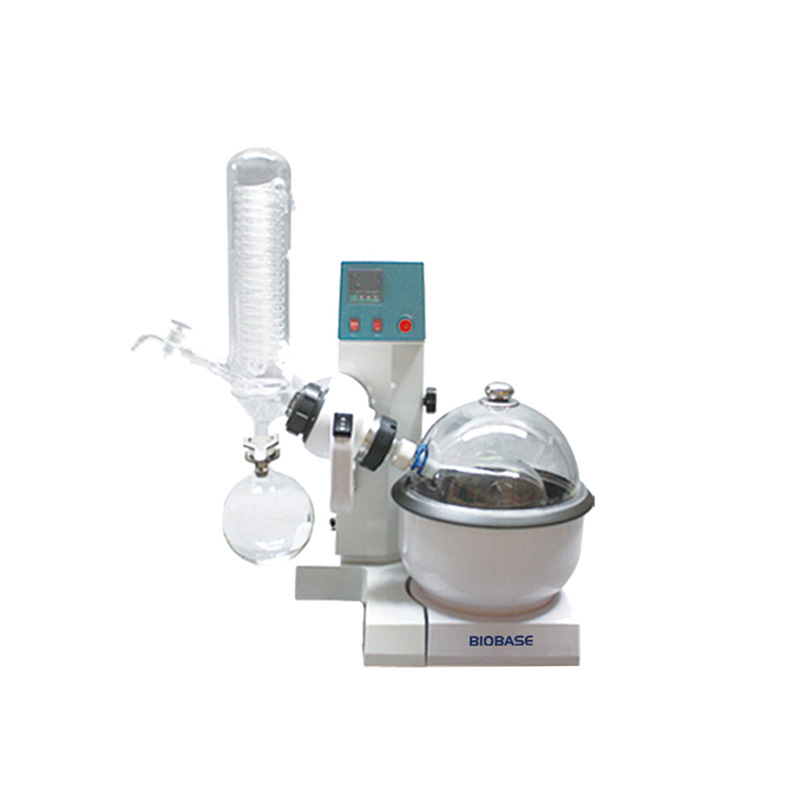

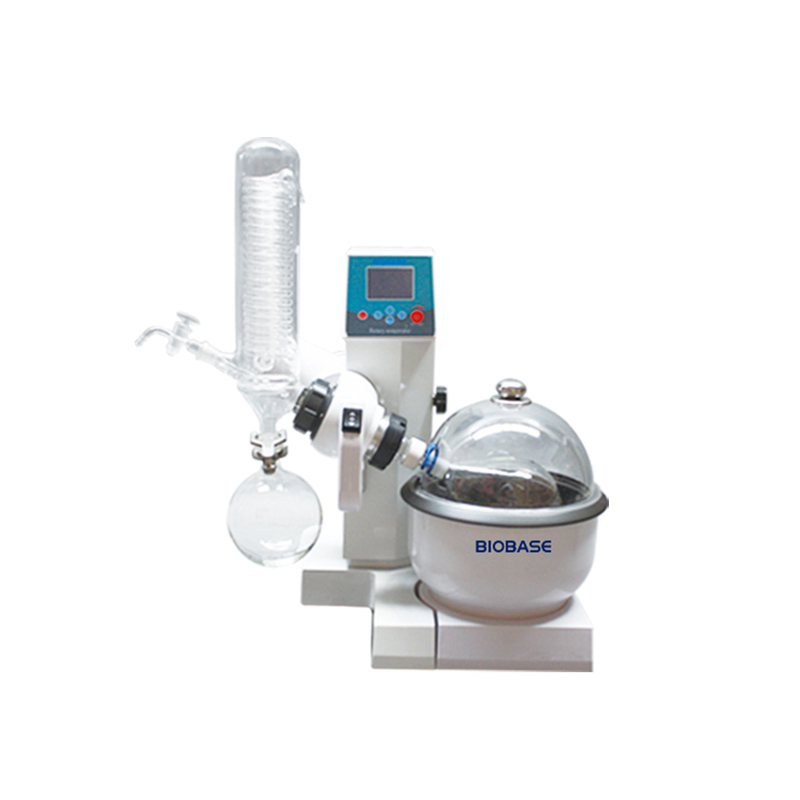

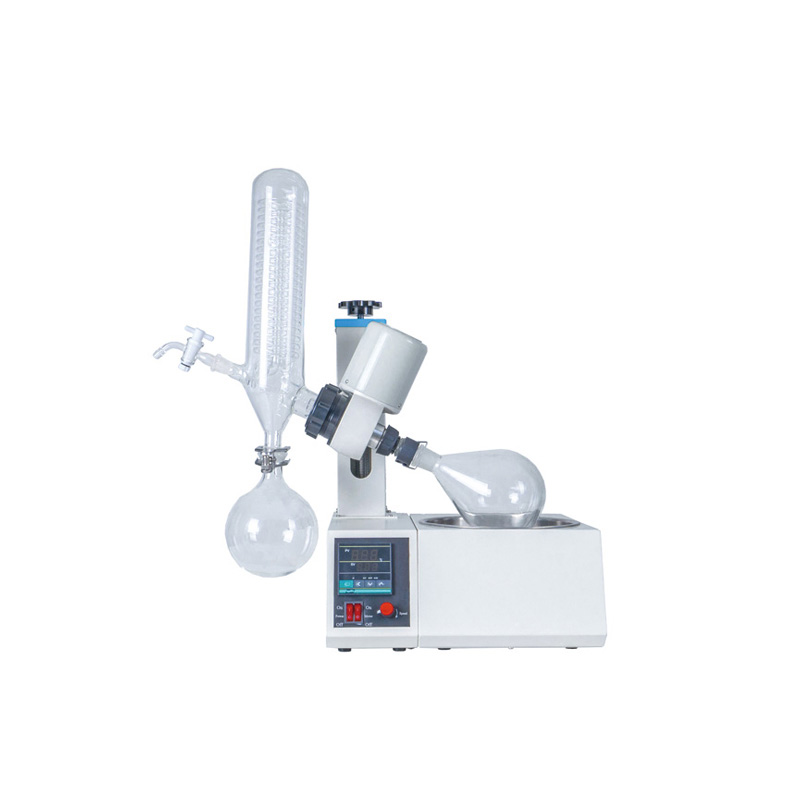

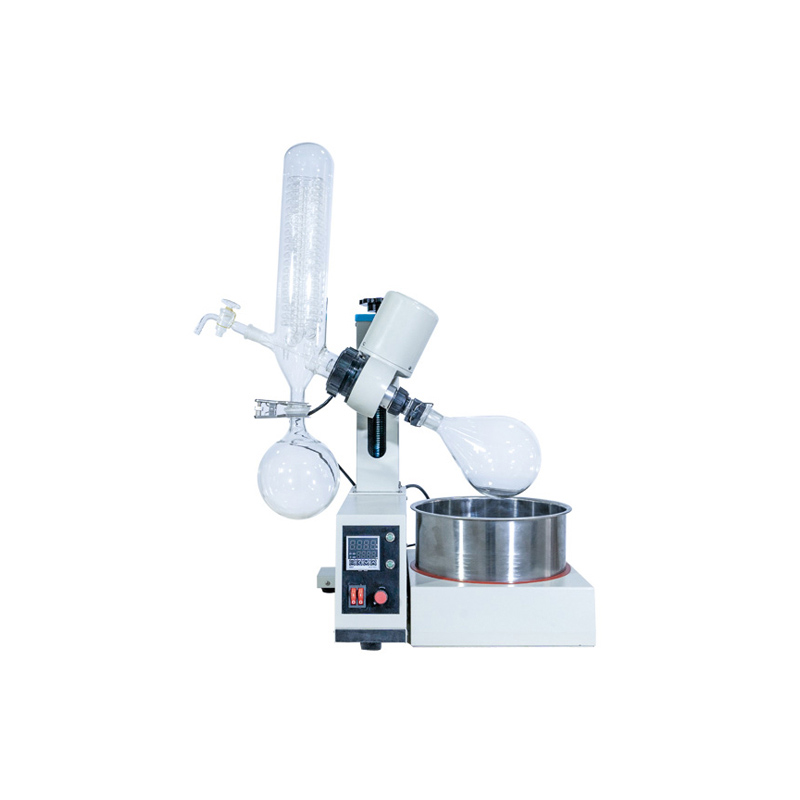

Small Capacity Rotary Evaporator
RE-2000 A / RE-2000B / RE-2000E / RE-52 A / RE-52C / RE-5299
The Small Capacity Rotary Evaporator is a compact and efficient laboratory instrument designed for solvent evaporation, distillation, and purification in small-scale experiments.
Key features
- Adjustable rotation and temperature
- Selectable flask configuration
- Compatible with vacuum systems
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.
01 / Accessories
Available accessories
Optional accessories
- Transparent bath cover
- Vacuum pump
- Recirculating chiller
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | RE-2000 A | RE-2000B | RE-2000E | RE-52 A | RE-52C | RE-5299 |
|---|---|---|---|---|---|---|
| Rotary Bottle | ||||||
| Collecting Bottle | 1 L 35#(Ball mill mouth) | 1 L 35#(Ball mill mouth) | 1 L 35#(Ball mill mouth) | 0.5 L 24#(Standard size) | 0.5 L 24#(Standard size) | 0.5 L 24#(Standard size) |
| Condenser | Vertical φ85 × 430 mm | Vertical φ85 × 430 mm | Vertical φ85 × 430 mm | Vertical φ85 × 450 mm, 29#(Standard size) | Vertical φ85 × 450 mm, 29#(Standard size) | Vertical φ85 × 450 mm, 29#(Standard size) |
| Charging Valve | ||||||
| Rotating Speed | 0–200 rpm | 0–200 rpm | 0–200 rpm | 0–120 rpm | 0–120 rpm | 0–120 rpm |
| Vacuum | ||||||
| Temp. Range | ||||||
| Temp. Accuracy | ||||||
| Stroke Height | 120 mm | 120 mm | 120 mm | 150 mm | 150 mm | 150 mm |
| Rotating Power | 40 W | 40 W | 40 W | 30 W | 30 W | 30 W |
| Heating Power | 1.5KW | 1.5KW | 1.5KW | 1KW | 1KW | 1KW |
| Shelf Material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Powder coating anticorrosive | Powder coating anticorrosive | Powder coating anticorrosive |
| Chamber Size | φ235 × 145 mm | φ235 × 145 mm | φ235 × 145 mm | φ220 × 120 mm | φ220 × 120 mm | φ245 × 140 mm |
| Power Supply | ||||||
| External Size(W*D*H) | 630 × 400 × 690–810 mm | 630 × 400 × 690–810 mm | 630 × 400 × 690–810 mm | 640 × 430 × 860–1010 mm | 640 × 430 × 860–1010 mm | 660 × 440 × 880–1030 mm |
| Package Size(W*D*H) | 620 × 620 × 490 mm | 620 × 620 × 490 mm | 620 × 620 × 490 mm | 600 × 460 × 470 mm | 600 × 460 × 470 mm | 600 × 460 × 470 mm |
| Gross Weight | 25 kg | 25 kg | 23 kg | 19 kg | 20 kg | 20 kg |
| Standard Accessory | ||||||
| Optional Accessory | ||||||
MADE-TO-ORDER SUPPLY
Do you need this equipment?
Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
