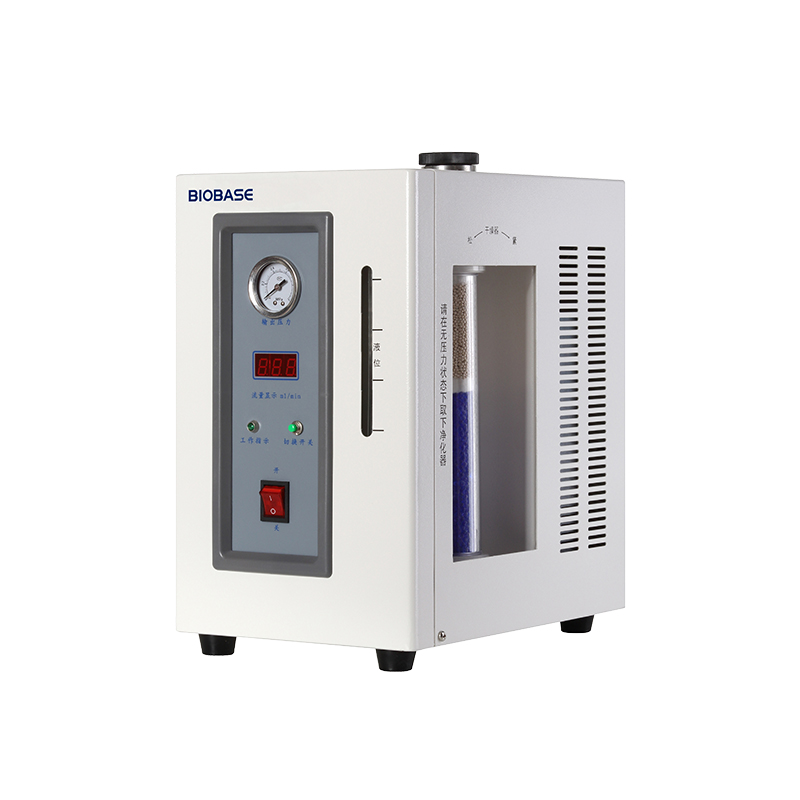

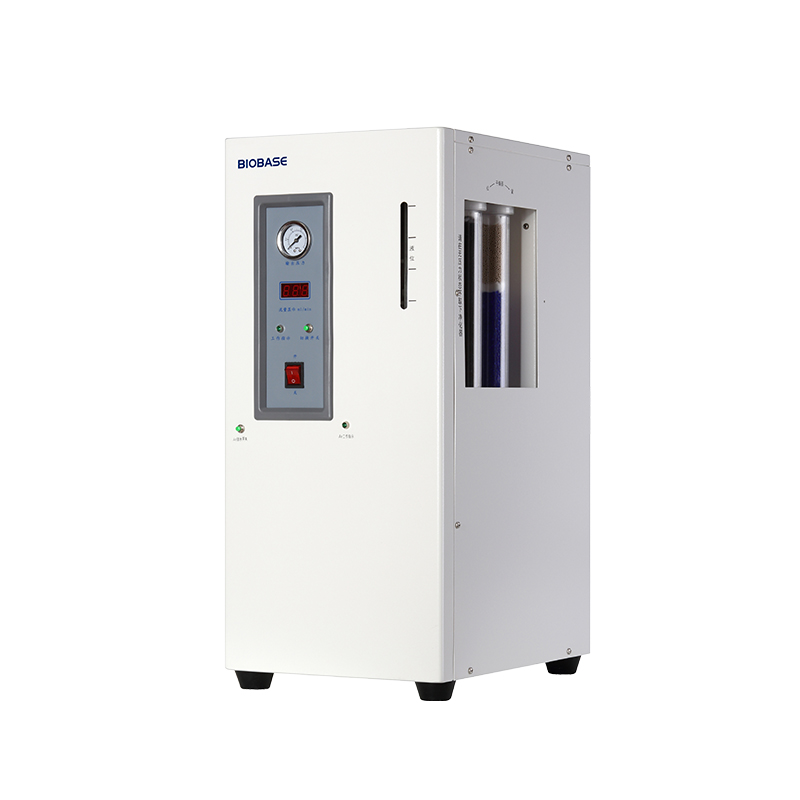

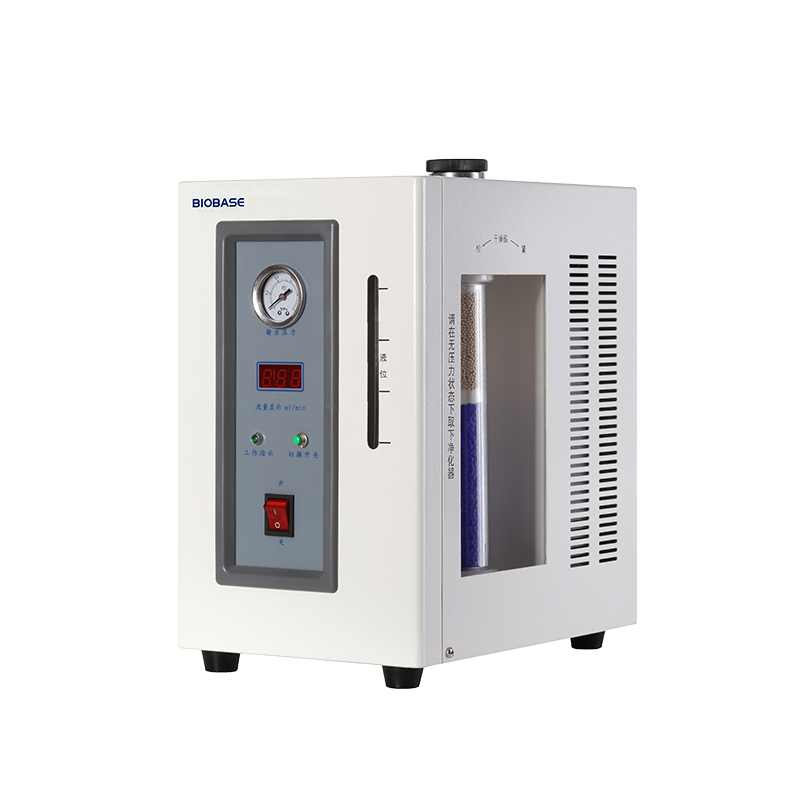

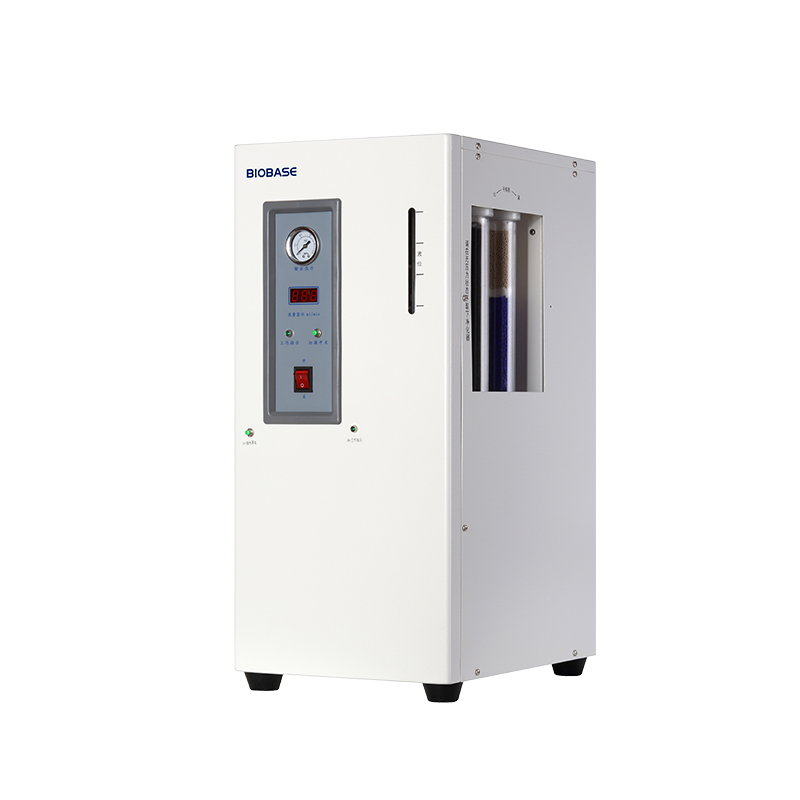

Laboratory Nitrogen Generator

NG-300II / NG-500II / NG-300P / NG-500P

It is a device that separates oxygen and nitrogen from the air by physical methods to produce high-purity nitrogen. It is widely used in laboratories, industrial production, and precision instrument fields.

Key features

On-site generation
Flow and purity matched to the application
Integration with instruments and processes

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	NG-300II	NG-500II	NG-300P	NG-500P
Output Flow(ml/min)	0–300 mL/min	0–500 mL/min	0–300 mL/min	0–500 mL/min
Output Pressure	Common to all models0–0.5Mpa(Factory setting 0.4Mpa)
Purity	Common to all models>99.997 %
Surrounding Requirement	Common to all modelsTemperature 10–40 °C
Consumption	80 W	120 W	650 W	750 W
Power Supply	Common to all modelsAC220V±10 %, 50 Hz±5 %(Standard); AC110, 60 Hz(Optional)
Instrument Size(WDH)	320 × 220 × 370 mm	320 × 220 × 370 mm	400 × 300 × 640 mm	400 × 300 × 640 mm
Package Size(WDH)	390 × 280 × 430 mm	390 × 280 × 430 mm	475 × 375 × 720 mm	475 × 375 × 720 mm
Net Weight	15 kg	15 kg	40 kg	40 kg
Gross Weight	17 kg	17 kg	42 kg	42 kg
