Temperature control

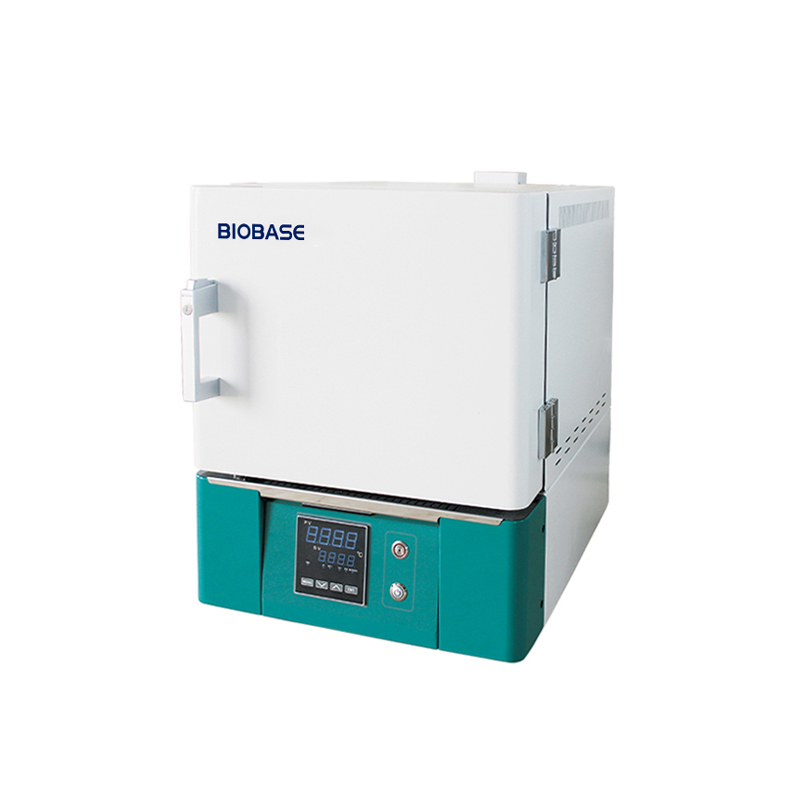

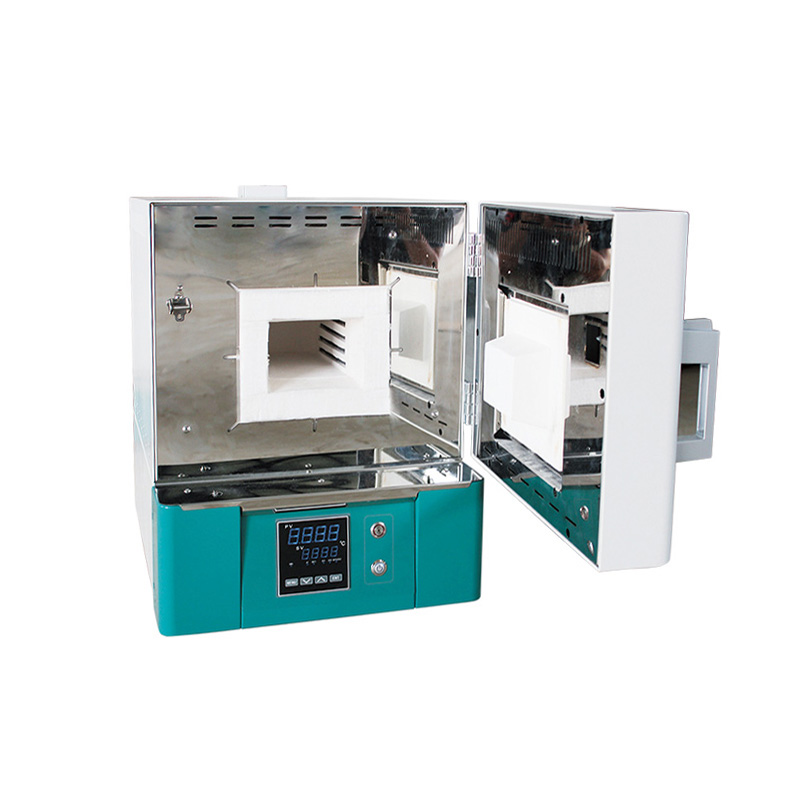

Lab 1200 Degree Celsius Muffle Furnace
MC2.5–12 / MC5–12 / MC10–12
The Muffle Furnace is a high-temperature laboratory heating device designed for precise heat treatment, material testing, ashing, and calcination processes. It provides a controlled environment for heating materials to extreme temperatures while ensuring uniform temperature distribution.
Key features
- Programmable temperature
- Uniform heating or cooling
- Selectable capacities and accessories
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | MC2.5–12 | MC5–12 | MC10–12 |
|---|---|---|---|
| Max Temp. | |||
| Temp. Rising Time(Empty) | |||
| Temp. Accuracy | |||
| Capacity(L) | 2 | 7 | 16 |
| Power(KW) | 1.5 | 3 | 6 |
| Power Supply | Standard: AC220V, 50/60 Hz; Optional: AC110V, 50/60 Hz | Standard: AC220V, 50/60 Hz; Optional: AC110V, 50/60 Hz | Standard: AC380V, 50/60 Hz; Optional: AC220V, 50/60 Hz |
| Internal Size(W*D*H)mm | 120 × 200 × 80 | 200 × 300 × 200 | 250 × 400 × 160 |
| External Size(W*D*H)mm | 450 × 685 × 600 | 530 × 785 × 640 | 600 × 895 × 700 |
| Packing Size(W*D*H)mm | 570 × 770 × 740 | 650 × 870 × 780 | 720 × 980 × 845 |
| Gross Weight(kg) | 37 | 50 | 96 |
