Gas & steam generators

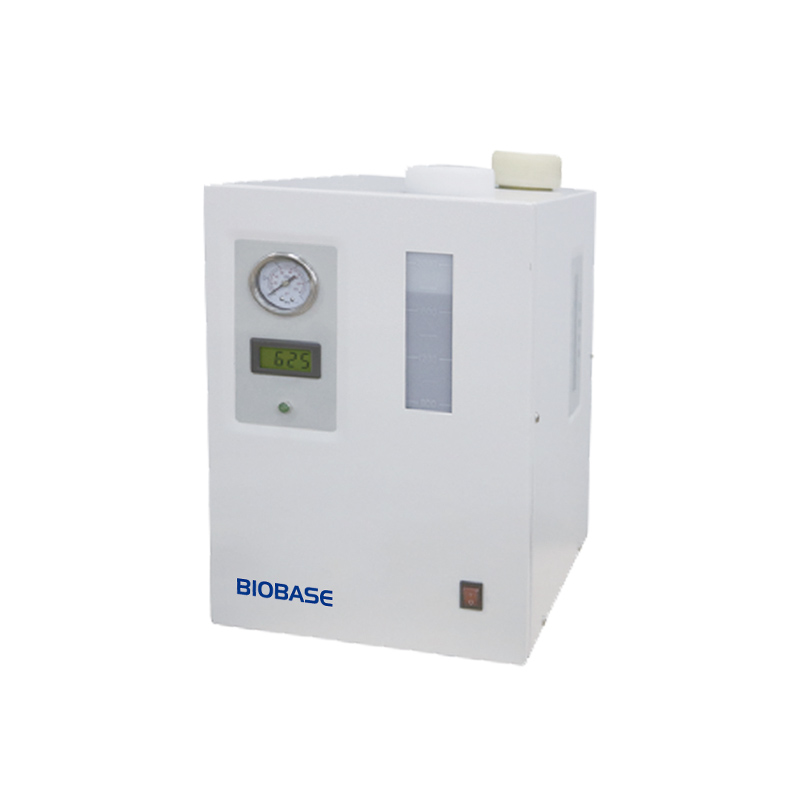

Pure Water Hydrogen Generator

HGC-200 / HGC-300 / HGC-600

The Pure Water Hydrogen Generator is an advanced, eco-friendly laboratory gas generator designed to produce high-purity hydrogen gas through the electrolysis of deionized or distilled water.

Key features

  • On-site generation
  • Flow and purity matched to the application
  • Integration with instruments and processes
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterHGC-200HGC-300HGC-600
Type Output Flow(ml/min)
Common to all modelsLaboratory type: 0–200 · Laboratory type: 0–300 · Laboratory type: 0–600
Type Output Pressure
Common to all modelsLaboratory type: 0.4 MPa/0.02–0.7 MPa(under stable pressure) · Laboratory type: 0.4 MPa/0.02–0.7 MPa(under stable pressure) · Laboratory type: 0.4 MPa/0.02–0.7 MPa(under stable pressure)
Type Hydrogen Purity
Common to all modelsLaboratory type: >99.999 % · Laboratory type: >99.999 % · Laboratory type: >99.999 %
Type Silicon Tube
Common to all modelsLaboratory type: Yes · Laboratory type: Yes · Laboratory type: Yes
Type Pressure Stability
Common to all modelsLaboratory type: <0.001Mpa · Laboratory type: <0.001Mpa · Laboratory type: <0.001Mpa
Type Consumption
Common to all modelsLaboratory type: 120 W · Laboratory type: 150 W · Laboratory type: 300 W
Type Power Supply
Common to all modelsLaboratory type: AC110V/220 V±10 %, 50/60 Hz · Laboratory type: AC110V/220 V±10 %, 50/60 Hz · Laboratory type: AC110V/220 V±10 %, 50/60 Hz
Type External Size(W*D*H)
Common to all modelsLaboratory type: 350 × 220 × 380 mm · Laboratory type: 350 × 220 × 380 mm · Laboratory type: 350 × 220 × 380 mm
Type Package Size(W*D*H)
Common to all modelsLaboratory type: 500 × 370 × 540 mm · Laboratory type: 500 × 370 × 540 mm · Laboratory type: 500 × 370 × 540 mm
Type Net Weight
Common to all modelsLaboratory type: 11 kg · Laboratory type: 11 kg · Laboratory type: 13 kg
Type Gross Weight
Common to all modelsLaboratory type: 12 kg · Laboratory type: 12 kg · Laboratory type: 14 kg

Technical data supplied by BIOBASE.
