Laboratory analysis

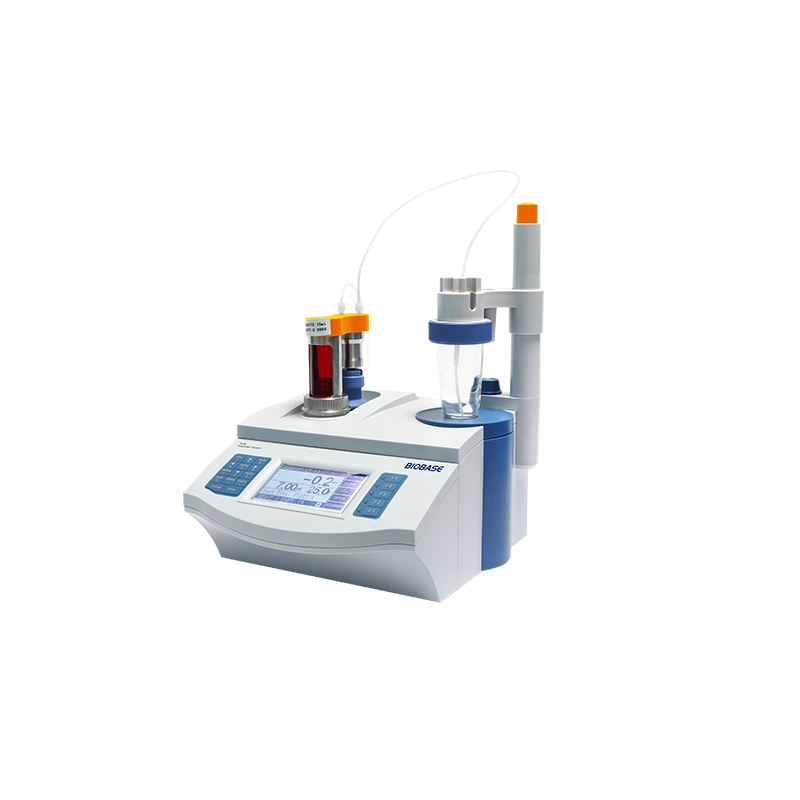

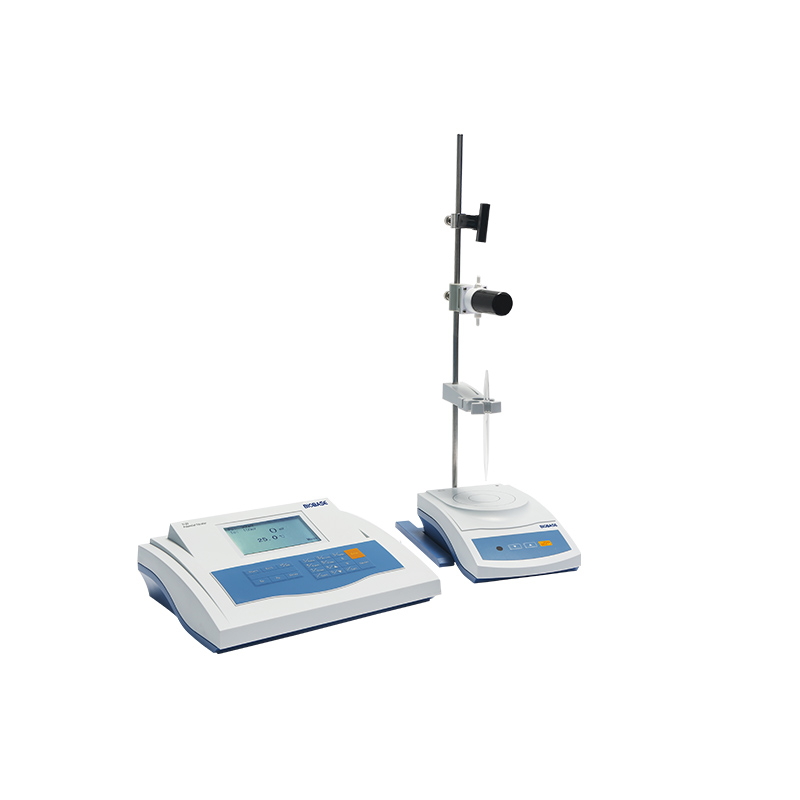

Potential Titrator TI Series
Ti-40 / Ti-20
The Potential Titrator is an advanced analytical instrument designed for precise and automated potentiometric titration in laboratories.
Key features
- Digital measurement
- Method matched to the parameter
- Repeatable results and data capture
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | Ti-40 | Ti-20 |
|---|---|---|
| Measuring Range | pH: 0.00–14.00pH mV: -1800.0–1800.0 mV Temp.: -5.0–105.0 °C | pH: 0.00–14.00pH mV: ±1400 mV |
| Measuring Resolution | pH: 0.01pH mV: 0.1 mV Temp.: 0.1 °C | pH: 0.01pH mV: 1 mV |
| Measuring Accuracy | pH: ±0.01pH mV: ±0.05 %(full scale) Temp.: ±0.3 °C | pH: ±0.03pH mV: ±0.35 %(full scale) |
| Burette Volume Accuracy | 10 mL burette: ±0.025 mL 20 mL burette: ±0.035 mL | / |
| Burette Supplementary Speed | 55±10 s(when burette is full scale) | / |
| Repeatability Titration Analysis | 0.2 % | / |
| Repeatability Accuracy | ≤0.2 mV | / |
| Stability | ±0.3 mV±1bit/3 h | ±0.01pH/3 h |
| Sensitive of Control Titration | ±2 mV | ±5 mV |
| Power Supply | AC adapter, 100–240 V, 50/60 Hz AC input, C24V output | AC adapter, 110/220 V, 50/60 Hz AC input |
| External Size(W*D*H) | 340 × 400 × 400 mm | 300 × 235 × 100 mm |
| Package Size(W*D*H) | 540 × 490 × 480 mm | 370 × 305 × 330 mm |
| Net Weight | 10 kg | 5 kg |
| Gross Weight | 12 kg | 6 kg |
