Photography and technical data supplied by: BIOBASE · 1 image.

PCR & extraction

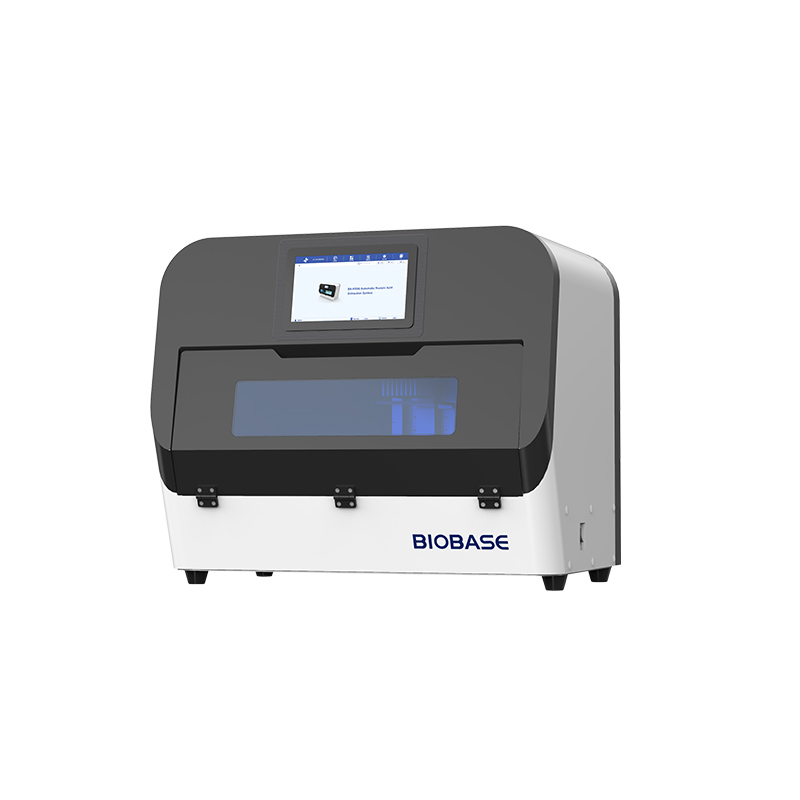

Nucleic Acid Extractor

BK-HS96

BK-HS96 is a high throughput, high sensitivity automatically extracted nucleic acid purification equipment, matching nucleic acid extraction kits is used to automatically complete the extraction of sample nucleic acid, flexible, stable result, low cost, equipped with efficient filtration device and safety gate design, it can effectively avoid cross infection and ensure the quality of nucleic acid extraction., guarantee the quality of nucleic acid.

Key features

  • Molecular-biology workflow
  • Thermal control or automated extraction
  • Configuration matched to required throughput
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-HS96
Nucleic Acid Extraction Method
Paramagnetic particle method
Sample Capacity
96-well
Sample Volume
20–1000µl
Extraction Time
11 min~60 min
Magnetic Bead Recovery
≥98 %
Magnetic Flux of Bar
≥4500Gs
Operating Temperature
RT~105 °C
Shock Function
Yes
Temperature Accuracy
0.1 °C
Sample Protection Function
Power on self-check, power off protection, high-temperature alarm, over-temperature protection
Disinfection Method
UV light
Safety Door Design
The instrument is suspended when the safety door is opened
Operating System
Windows system
Scanning
Optional
Storage
>1000
Interface
USB interface
Power Supply
AC100–240 V, 50 Hz/60 Hz
Package Size(W*D*H)
940 × 710 × 910 mm
Gross Weight
110 kg

Technical data supplied by BIOBASE.
