Refractometry & polarimetry

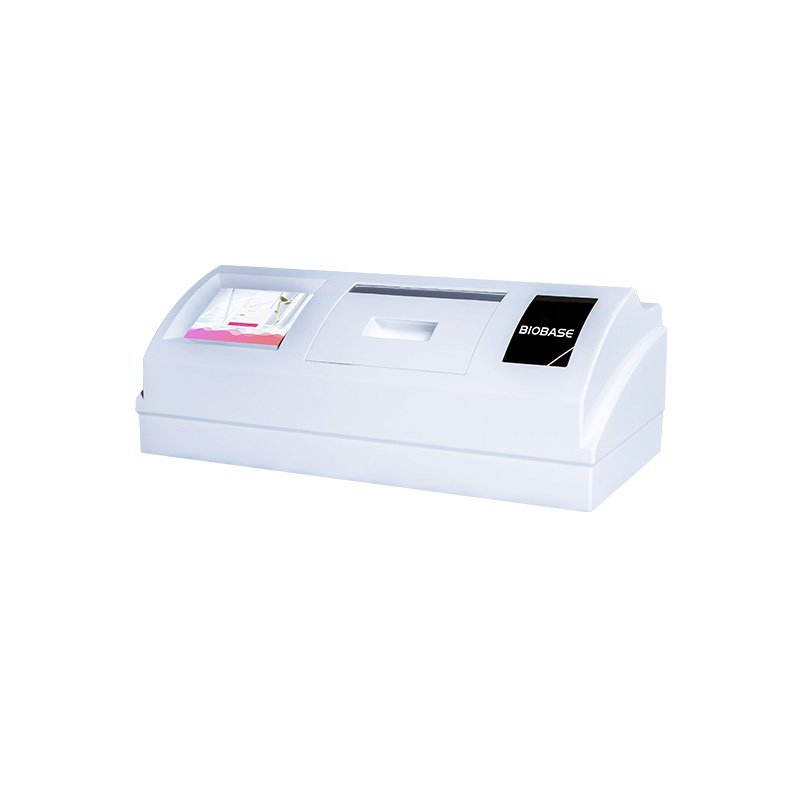

Automatic Polarimeter

BK-P210

Polarimeter is an instrument for measuring the optical rotation of some substance. Through the measurement of optical rotation, it can analyze and determine the specific rotation, international sugar degree, concentration and purity of the substance, which is widely used in medicine, petroleum, food, chemical industry, flavor, fragrance, sugar and other industries as well as related universities and research institutes.

Key features

  • High-precision optical measurement
  • Automatic and portable configurations
  • Quality-control and formulation applications
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-P210
Light Source
LED cold light source+high precision interference filter
Wavelength
589.3 nm
Measurement Method
Single, multiple, continuous measurement methods
Measurement Range
Optical Rotation±89.99°, Sugar Degree±257°
Optical Rotation
Least Count · 0.001°
Optical Rotation (2)
Accuracy · ±0.01°(45°≤optical rotation≤+45°) ±0.02°(Other ranges)
Optical Rotation (3)
Repeatability · 0.002°
Temperature
Temp. Range · 0–100 °C
Temperature (2)
Temp. Resolution · 0.1 °C
Temperature (3)
Temp. Accuracy · ±0.1 °C
Display
7-inch TFT touch color screen
Standard Test Tube
200 mm, 100 mm(Regular)
Optional
Test tube, printer
Transmittance
0.01 %
Data Storage
1000 groups
File Export
PDF and Excel
Interface
USB, RS232
Power Supply
AC110/220 V, 50/60 Hz
Power
250 W
External Size(W*D*H)
715 × 355 × 280 mm
Package Size(W*D*H)
820 × 475 × 465 mm
Net Weight
21.4 kg
Gross Weight
30 kg

Technical data supplied by BIOBASE.
