Electrophoresis & imaging

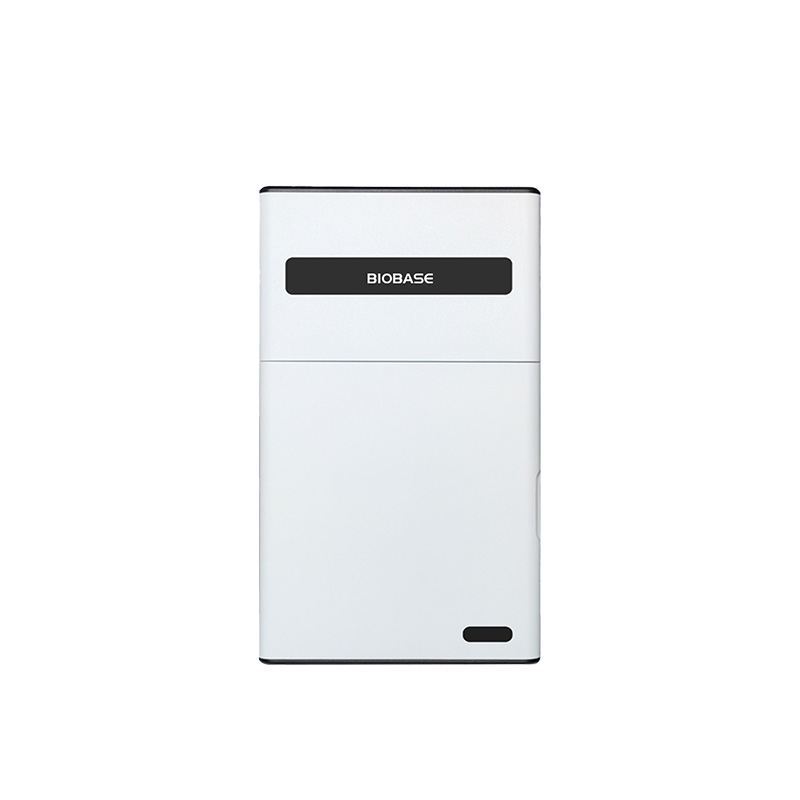

Automatic Chemiluminescence Gel Imaging System

BK-ACG600 / BK-ACG900

Applications: Nucleic acid detection: EB, SYBRGold, SYBRGreen, SYBRSafe, GelRed, GelGreen, Fluorescein. Protein test: Silver dyeing, SDS-page, Visible light imaging.

Key features

  • Digital gel imaging
  • Controlled exposure and illumination
  • Results documentation
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-ACG600BK-ACG900
Camera Resolution9.0MP12.0MP
C ooling Temperature
Common to all models- 65 °C
Photosensitive Efficiency
Common to all models95 %
Pixel Size3.75 × 3.75 µm4.63 × 4.63 µm
Exposure Time
Common to all models1ms ~60 min
Pixel Density
Common to all models1 6 Bits(0–65535)
OD
Common to all models≥4.8OD
Lens
Common to all modelsS tandard: F=0.95, 25 mm; Optional: F=0.8, 25 mm
UV Transmission
Common to all models302 nm
White Light Reflection
Common to all modelsLED reflection(cold light)
Filter
Common to all modelsStandard 590 nm, other optional
Shooting Area
Common to all models32 × 26 cm
Timer Shut Down
Common to all models1–60 min
Power Supply
Common to all models100–240 V, 50/60 Hz
Packing Size
Common to all models490 × 515 × 845 mm
Gross Weight
Common to all models40 kg

Technical data supplied by BIOBASE.
