Cold storage

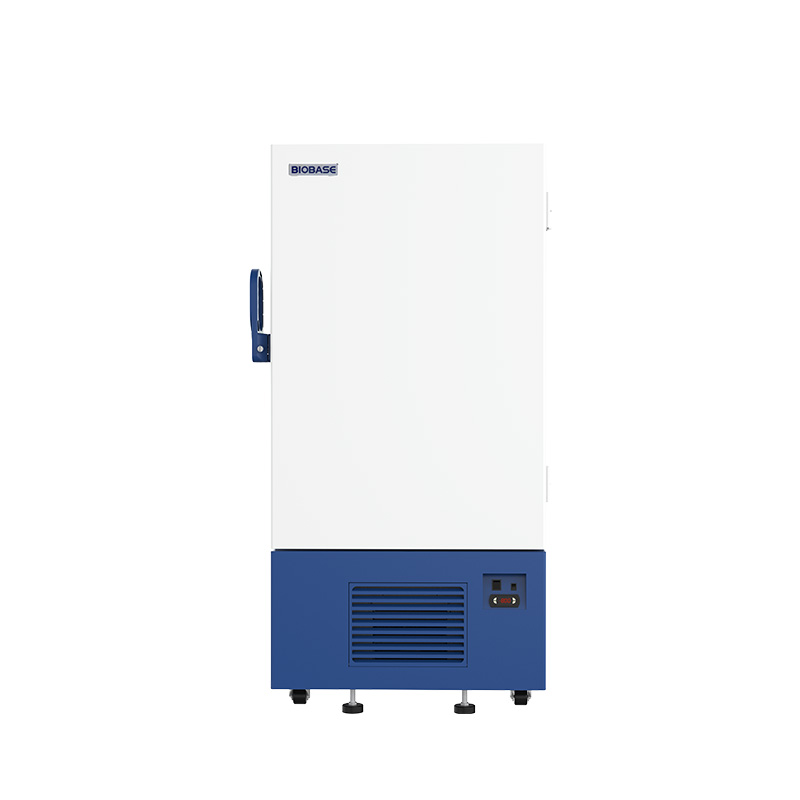

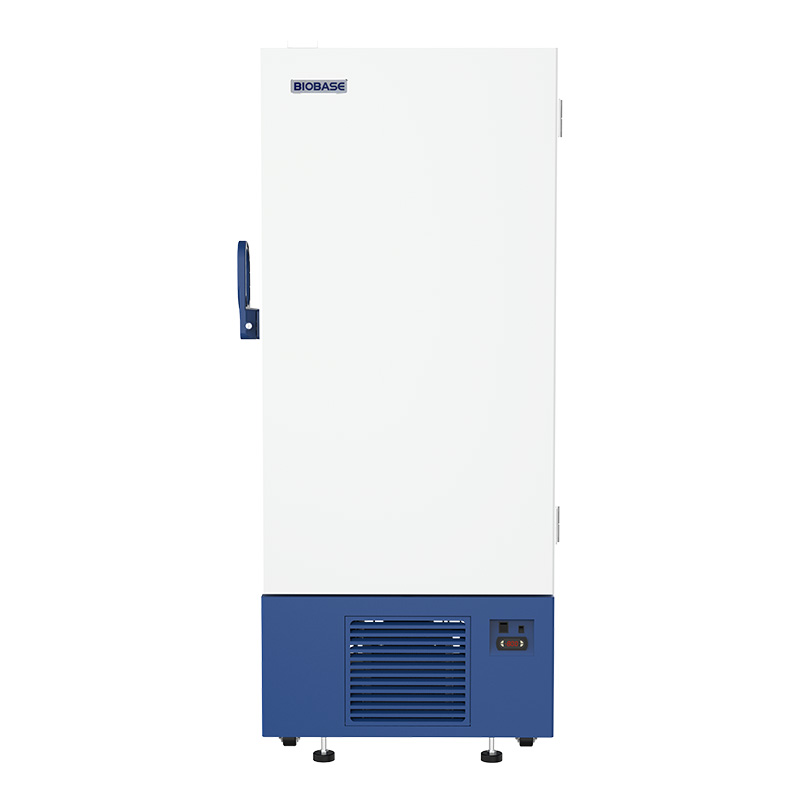

86℃ Freezer (Inverter Type)

BDF-86V168B / BDF-86V348B

The -86 °C Freezer is specifically designed for the long-term preservation of highly temperature-sensitive samples. It maintains sample viability and stability at extremely low temperatures, widely used in biobanking, pharmaceutical research, clinical medicine, and food safety.

Key features

  • Monitored temperature
  • Alarms and sample protection
  • Capacity matched to inventory
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Test port*2(φ30 mm)

Optional accessories

  • Temperature recorder
  • USB port
  • RS485
  • Liquid nitrogen backup system

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBDF-86V168BBDF-86V348B
Capacity168 L348 L
Environment Temp.
Common to all models10–32 °C
Temp. Range
Common to all models-40~-86 °C
Temp. Accuracy
Common to all models0.1 °C
Temp. Uniformity
Common to all models±4 °C
Temp. Stability
Common to all models≤6 °C
Control System
Common to all modelsElectronic temperature control
Display
Common to all modelsLED
Alarm
Common to all modelsHigh / low temperature alarm, power failure alarm(72 h), controller failure alarm, door ajar alarm
Sensor Type
Common to all modelsPT1000
Refrigeration Type
Common to all modelsDirect-cooling
RefrigerantR600a/R1150/R14, 180 gR600a/R1150/R14, 285 g
Compressor
Common to all modelsInternational famous brand inverter compressor/1
Defrosting Method
Common to all modelsManual
Condenser & Evaporator
Common to all modelsCondenser: microchannel condenser Evaporator: internal coil; copper tube
Shelf2/Stainless steel3/Stainless steel
Noise
Common to all models53dB(A)
Outer Door
Common to all models1/Cyclopentane integral foaming
Inner Door3/Cyclopentane integral foaming2/Cyclopentane integral foaming
Consumption442 W400 W
Power Supply
Common to all modelsStandard: 220 V, 50 Hz Optional: 220 V, 60 Hz; 110 V, 60 Hz
Caster
Common to all modelsUniversal casters*4 + leveling feet*2
Standard Accessory
Common to all modelsTest port*2(φ30 mm)
Optional Accessory
Common to all modelsTemperature recorder, USB port, RS485, liquid nitrogen backup system
Inner Size(W*D*H)465 × 455 × 820 mm490 × 612 × 1150 mm
External Size(W*D*H)844 × 807 × 1594 mm869 × 989 × 1924 mm
Package Size(W*D*H)1000 × 970 × 1790 mm929 × 1049 × 2150 mm
Net Weight168 kg232 kg
Gross Weight221 kg300 kg

Technical data supplied by BIOBASE.
