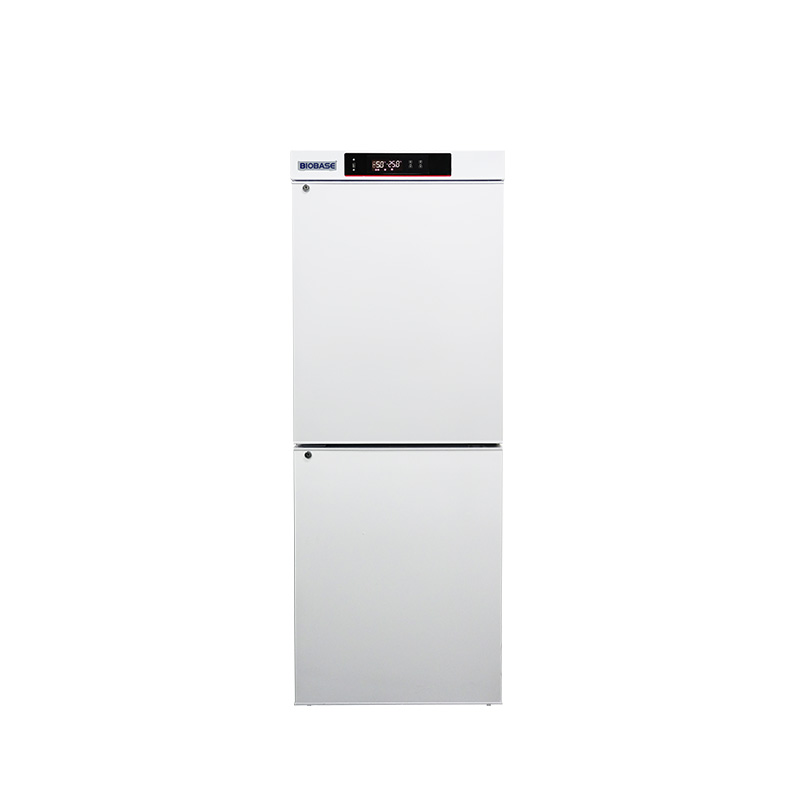

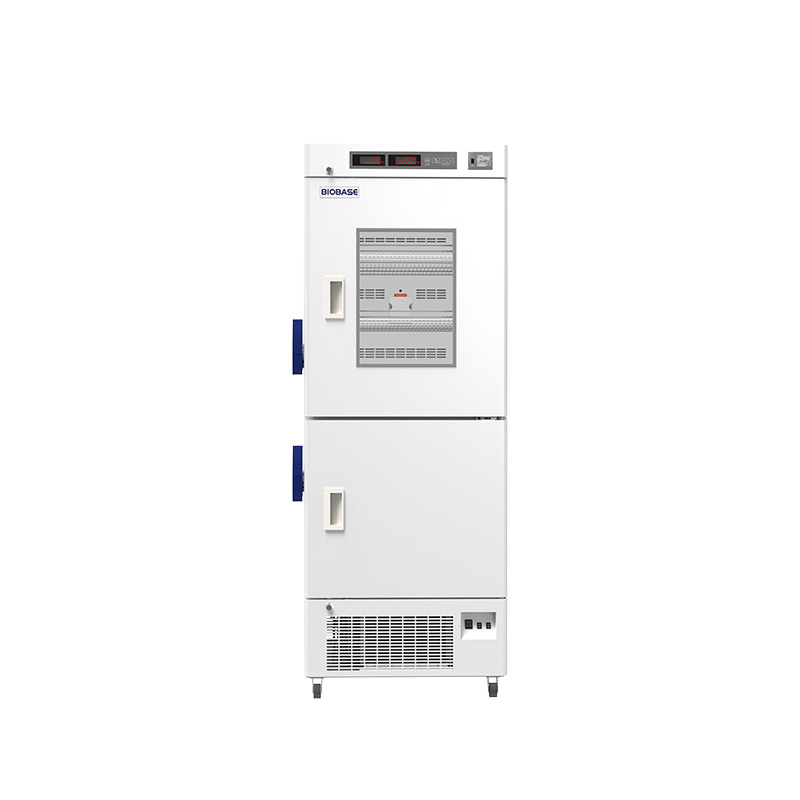

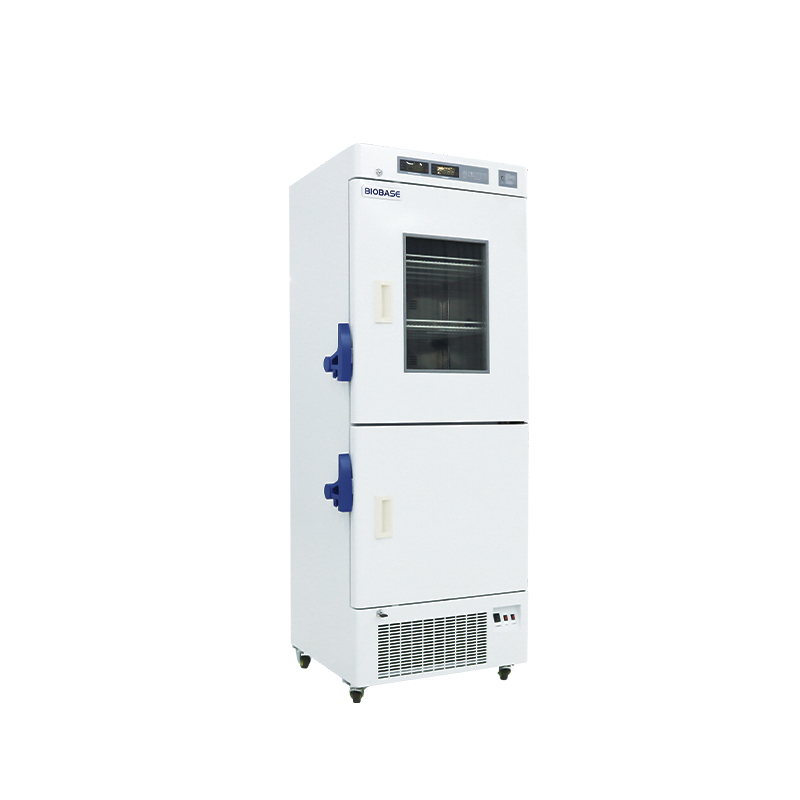

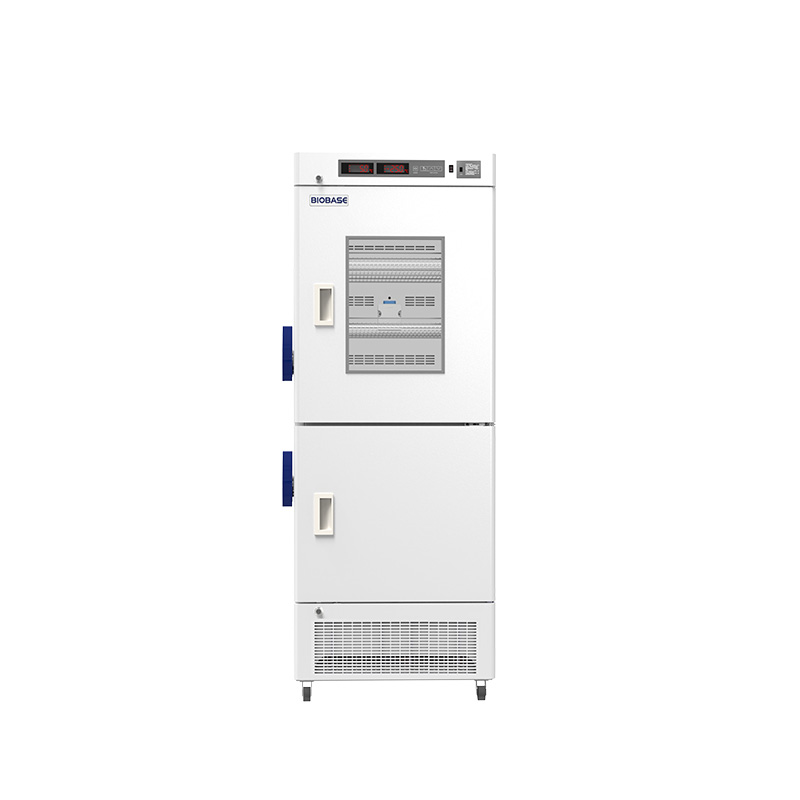

25℃ Freezer Combined Refrigerator and Freezer

BRF-25V300 / BRF-25V318 / BRF-25V368 / BRF-25V450

The -25 °C freezer can be used for scientific research, low temperature test of special materials, low temperature test of frozen plasma, biological materials, vaccines, biological products, etc. Applicable to scientific research institutes, electronics industry, chemical industry, hospitals, university laboratories, etc.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Test hole*2
USB interface

Optional accessories

Temperature recorder
Remote alarm
RS485 interface

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BRF-25V300	BRF-25V318	BRF-25V368	BRF-25V450
Capacity	Common to all modelsRefrigerator · 174 L · 208 L · 183 L · 295 L
Capacity (2)	Common to all modelsFreezer · 126 L · 110 L · 185 L · 155 L
Temp. Range	Common to all modelsRefrigerator · 2–8 °C · 2–8 °C · 2–8 °C · 2–8 °C
Temp. Range (2)	Common to all modelsFreezer · -10~-25 °C · -10~-25 °C · -10~-25 °C · -10~-25 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	Common to all modelsRefrigerator · ≤2 °C · · ≤2 °C · · ≤2 °C · · ≤2 °C ·
Temp. Uniformity (2)	Common to all modelsFreezer · ≤3 °C · ≤3 °C · ≤3 °C · ≤3 °C
Temp. Stability	Common to all models≤3 °C
Recovery Time ·	Common to all modelsRefrigerator · ≤15 min(Recover to 8 °C in an ambient temp. of 32 °C) · · ≤15 min(Recover to 8 °C in an ambient temp. of 32 °C) · · ≤15 min(Recover to 8 °C in an ambient temp. of 32 °C) · · ≤15 min(Recover to 8 °C in an ambient temp. of 32 °C) ·
Recovery Time · (2)	Common to all modelsFreezer · ≤15 min(Recover to -22 °C in an ambient temp. of 25 °C) · ≤15 min(Recover to -22 °C in an ambient temp. of 25 °C) · ≤15 min(Recover to -22 °C in an ambient temp. of 25 °C) · ≤15 min(Recover to -22 °C in an ambient temp. of 25 °C)
Cooling Time ·	Common to all modelsRefrigerator · ≤80 min(Cool down to 6 °C in an ambient temp. of 32 °C) · · ≤80 min(Cool down to 6 °C in an ambient temp. of 32 °C) · · ≤80 min(Cool down to 6 °C in an ambient temp. of 32 °C) · · ≤80 min(Cool down to 6 °C in an ambient temp. of 32 °C) ·
Cooling Time · (2)	Common to all modelsFreezer · ≤1.5 h(Recover to -25 °C in an ambient temp. of 25 °C) · ≤1.5 h(Recover to -25 °C in an ambient temp. of 25 °C) · ≤1.5 h(Recover to -25 °C in an ambient temp. of 25 °C) · ≤1.5 h(Recover to -25 °C in an ambient temp. of 25 °C)
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED
Alarm	High / low temperature alarm, power failure alarm(24 h), controller failure alarm, door ajar alarm	High / low temperature alarm, power failure alarm(72 h), controller failure alarm, door ajar alarm	High / low temperature alarm, power failure alarm(72 h), controller failure alarm, door ajar alarm	High / low temperature alarm, power failure alarm(72 h), controller failure alarm, door ajar alarm
Refrigeration Type	Common to all modelsRefrigerator · Air-cooling · Air-cooling · Air-cooling · Air-cooling
Refrigeration Type (2)	Common to all modelsFreezer · Direct-cooling · Direct-cooling · Direct-cooling · Direct-cooling
Refrigerant	Common to all modelsRefrigerator · R600a/28 g · R290/39 g · R290/25 g · R290/50 g
Refrigerant (2)	Common to all modelsFreezer · R600a/48 g · R290/55 g · R290/40 g · R290/57 g
Compressor	Common to all modelsInternational famous brand compressor /2
Condenser & Evaporator	Common to all modelsRefrigerator · Side-panel type Bundy tube condenser; wall-mounted/wire-on-tube Bundy tube evaporator · Wire-on-tube Bundy tube condenser; copper tube aluminum fin evaporator · Wire-on-tube Bundy tube condenser; Bundy tube evaporator · Wire-on-tube Bundy tube condenser; Bundy tube evaporator
Condenser & Evaporator (2)	Common to all modelsRefrigerator · Side-panel type Bundy tube condenser; wall-mounted/wire-on-tube Bundy tube evaporator · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了） · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了） · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了）
Condenser & Evaporator (3)	Common to all modelsFreezer · Side-panel type Bundy tube condenser; wall-mounted/wire-on-tube Bundy tube evaporator · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了） · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了） · Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator（合并了）
Defrost	Common to all modelsRefrigerator · Automatic defrost · Automatic defrost · Automatic defrost · Automatic defrost
Defrost (2)	Common to all modelsFreezer · Manual defrost · Manual defrost · Manual defrost · Manual defrost
Construction	Common to all modelsPolyurethane cyclopentane foam
Material ·	Common to all modelsInternal Material · HIPS · 304 stainless steel · 304 stainless steel · 304 stainless steel
Material · (2)	Common to all modelsExternal Material · Precoated steel plate · Sprayed steel plate · Sprayed steel plate · Sprayed steel plate
Door	*Outer door: cyclopentane monolithic foam door2 Interior door: /**	*Outer door: cyclopentane monolithic foam door2 Interior door: freezer door optional**	*Outer door: cyclopentane monolithic foam door2 Interior door: freezer door optional**	*Outer door: cyclopentane monolithic foam door2 Interior door: freezer door optional**
Consumption	160 W	390 W	594 W	410 W
Power Supply	AC 220 V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional)	AC 220 V, 50 Hz(Standard); 220 V, 60 Hz, 110 V, 60 Hz(Optional, external transformer)	AC 220 V, 50 Hz(Standard); 220 V, 60 Hz, 110 V, 60 Hz(Optional, external transformer)	AC 220 V, 50 Hz(Standard); 220 V, 60 Hz, 110 V, 60 Hz(Optional, external transformer)
Casters	No	Yes	Yes	Yes
Shelf	Common to all modelsRefrigerator · 3 · 3 · 3 · 3
Shelf (2)	Common to all modelsFreezer · 3(PS drawer) · 1 · 1 · 1
Standard Accessory	Common to all modelsTest hole*2, USB interface
Optional Accessory	Temperature recorder, remote alarm	Temperature recorder, remote alarm	Temperature recorder, RS485 interface	Temperature recorder, RS485 interface
Internal Size (WDH)	Common to all modelsRefrigerator · 510 × 480 × 720 mm · 590 × 495 × 746 mm · 580 × 575 × 563 mm · 590 × 675 × 746 mm
Internal Size (WDH) (2)	Common to all modelsFreezer · 420 × 450 × 670 mm · 520 × 467 × 460 mm · 580 × 575 × 563 mm · 520 × 647 × 460 mm
External Size (WDH)	595 × 600 × 1700 mm	741 × 631 × 1889 mm	750 × 736 × 1884 mm	741 × 811 × 1889 mm
